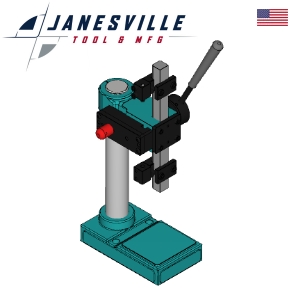

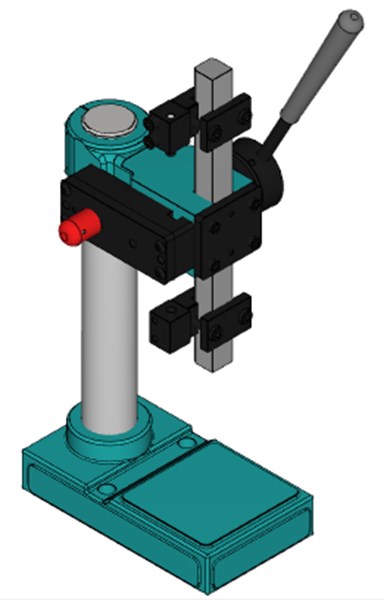

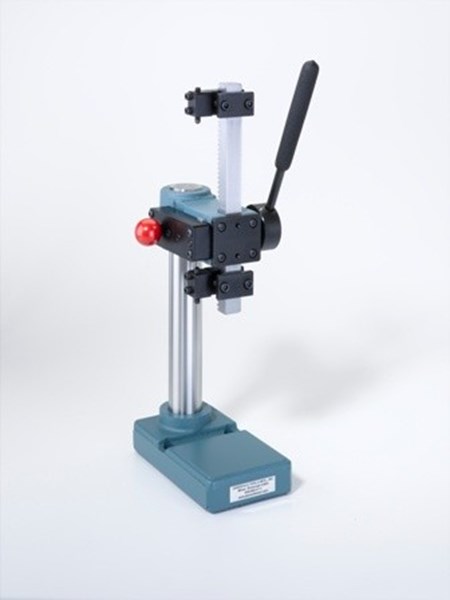

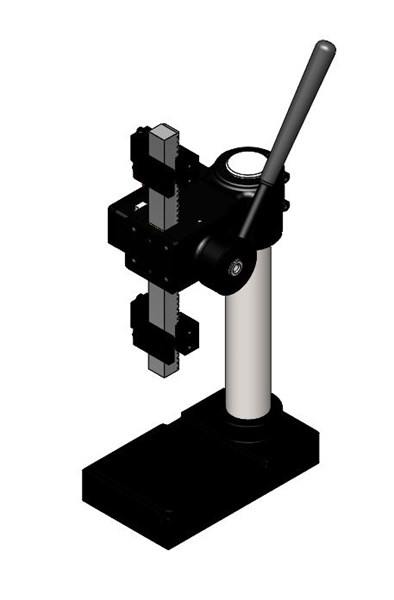

JT&M - 1/2 Ton Full Stroke Precision Lever Press – Model #AP-810-FS

Up-Stroke Limiter

Like the Adjustable Down Stop, the Up-Stroke Limiter clamps onto the ram of the press at any position. It is designed to limit the travel of the up-stroke in order to increase press productivity.

Model SL Stroke Limiter

ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS

Adjustable Handle Model

The Left/Right Adjustable Handle Press was designed to benefit the left-handed production worker, but it also can come in handy when the operator needs to hold tooling or parts with their right hand and operate the press from the left for assembly convenience and flow. The handle can be adjusted on either side in 30° increments without removing the ram of the press.

Model AP-810-FSAdjustable Handle Kit

ADD TO YOUR ORDER ABOVE USING THE AP-810-AH-FS PAGE OR CONTACT US FOR MORE DETAILS

Resettable Counter & Bracket

This Counter attaches to many of our manual presses and allows you to accurately track parts production.

Model PC-810 Resettable Counter

ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS

Multi-Position Fixtures

Our multi-position fixtures consist of a ground steel platen that can be indexed out from under the press ram to provide improved access to the fixture. This platen rides on precision fitted guide pins and bronze bushings. An adjustment screw is provided for accurate end stop positioning under the press ram. The multi-position fixture is a self-contained unit that can be mounted to our presses with two (2) screws.

Model 0632-Multi Position Fixture

ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS

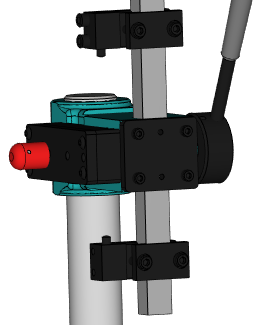

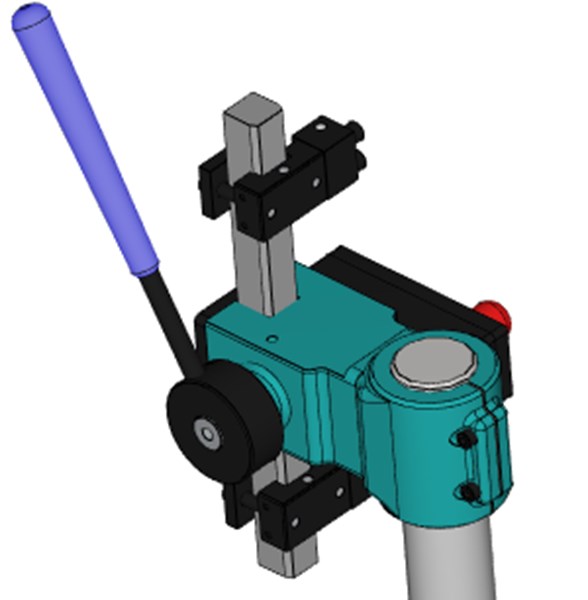

Full Stroke Lock Model FS

JT&M Inc.’s full stroke mechanism presses are designed to eliminate the production of inferior parts caused by incomplete pressing. With the use of an anti-return lock system the operator cannot return the stroke before the operation is complete. The lock is active over the whole stroke, not just the last part of the stroke. The FS presses are equipped with an Adjustable Down Stop, Up-Stroke Limiter, and a lock release knob which can be used if the pressing operation needs to be aborted to avoid the making of a defective part. With repeat accuracy of +/-.005, the presses are ideal for small-parts production and precision assembly by installing a line of them each tooled for a specific operation.

THIS MODEL ALREADY HAS THE FULL STROKE MECHANISM INCLUDED. CONTACT US FOR MORE DETAILS

Die Sets

An economical lean way to cut the high costs of purchasing multiple presses to perform different applications. By tooling up several die sets, one press can be used to achieve multiple assemblies. A wide range of Die Sets are ready for 24 hour delivery after receipt of your order. Special machining and custom applications are available, along with several options for all your necessary die set needs. All JT&M Inc. die sets come standard with hardened pins and bushings for long wear.

• A36 Steel Die Sets
• A36 Steel Die Set with Ball Bushings
• Flanged Stock Two Post Die Sets
• Power Die Sets
• Clean Room Die Sets
• Custom Die Sets

All Die Sets can be arranged for assembly with your JT&M Inc. manual or pneumatic arbor press at a minimal cost.

CONTACT US FOR MORE DETAILS

Value Added Services

Your design or our design, from concept to completion, let JT&M Inc. be your value added supplier.

Due to increasing demand from our customers, JT&M, Inc. is offering “Value Added Services” to better meet your needs for “One Stop Shopping” and “Turn Key Systems”.

Whether it’s a simple tapped hole in the end of a ram on one of our presses, or as complex as a complete die set or press assembly system, JT&M Inc. has equipment set up and ready for a quick turnaround utilizing the latest software, most common tooling, and fixturing available in manufacturing today.
