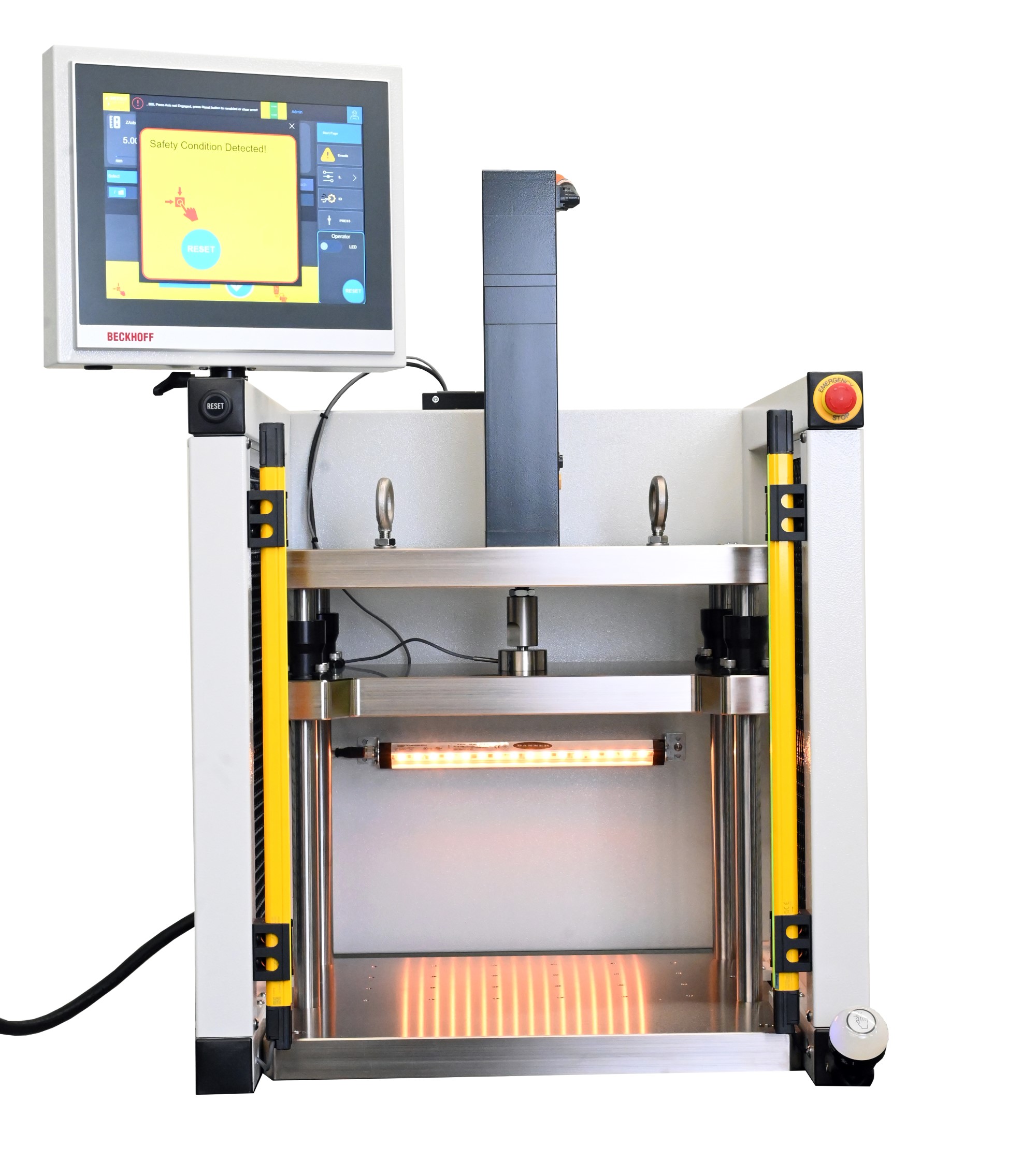

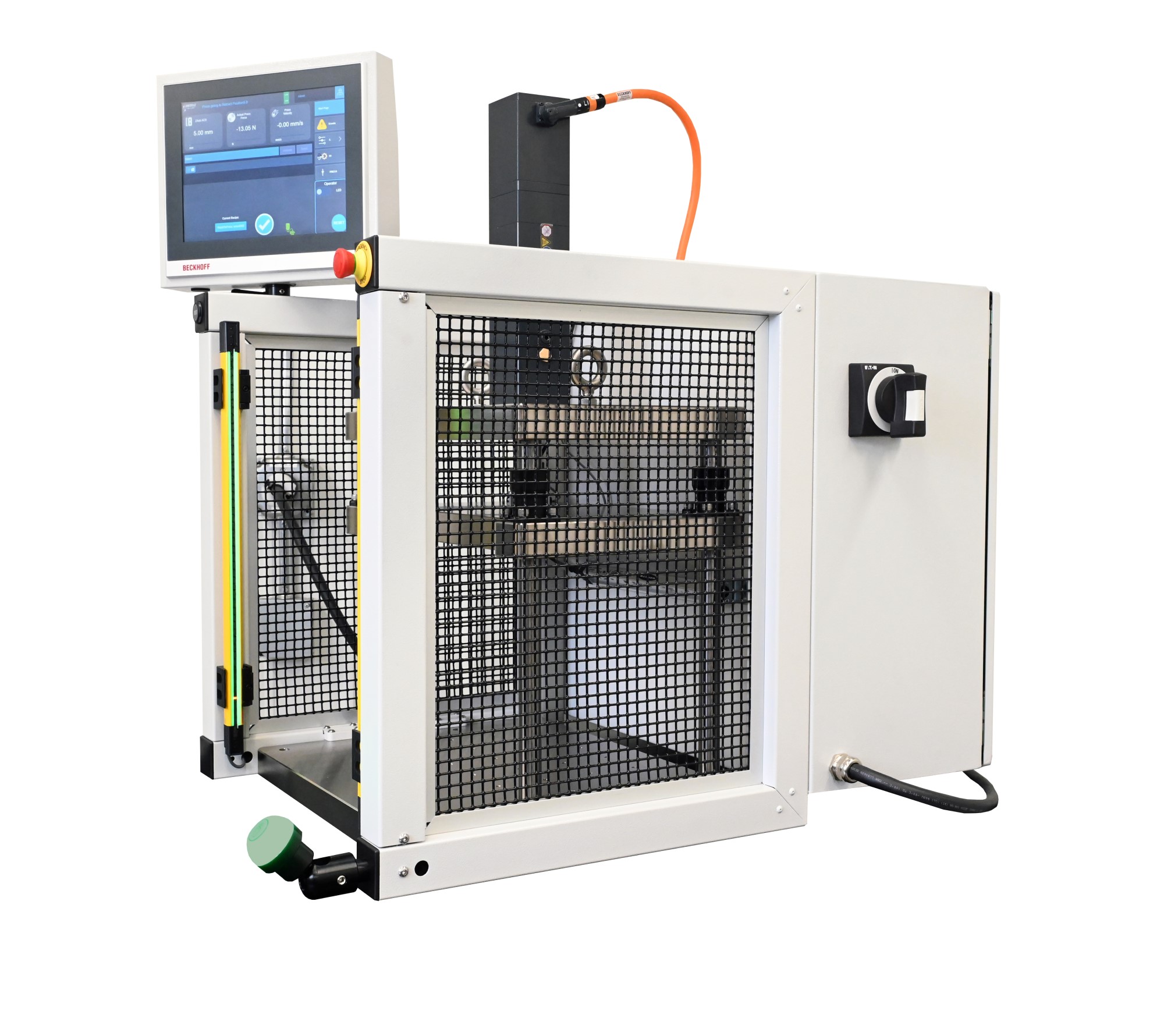

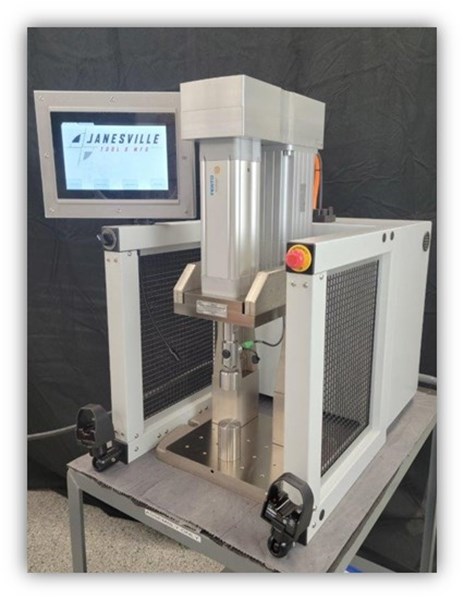

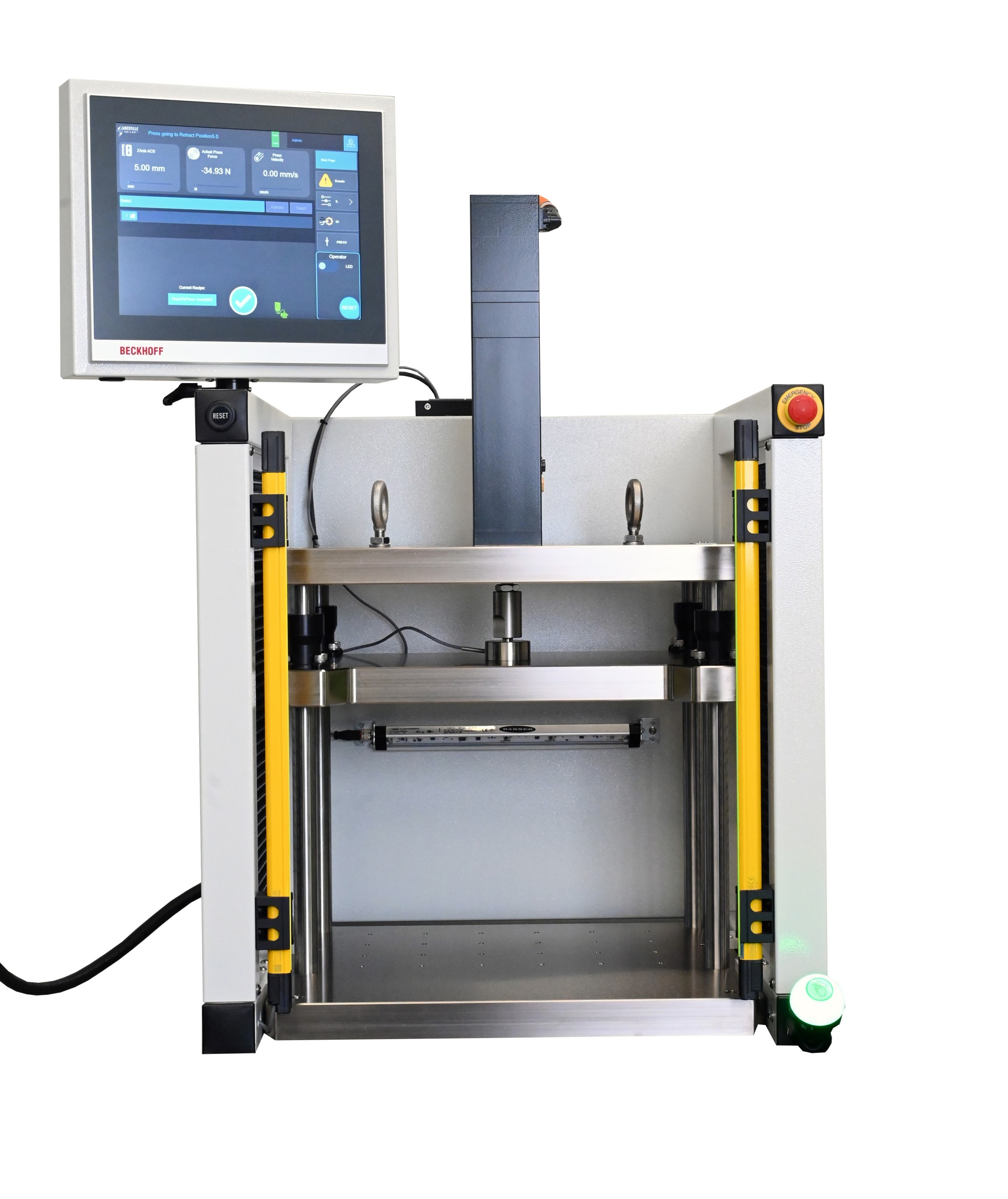

JT&M SP4 4-Post Frame Servo Press

JT&M - SP4 4-Post Frame Servo Press

SKU: SP4-

Request a quote to get pricing information on this product.

Need something more specific?

Press Customization Form JTM Engineering Support

Specifications

Frame

  • SPC: C-Frame (M-Series)
  • SP4: 4-Post Frame

Stroke (mm)

  • 100 mm
  • 200 mm
  • 300 mm
  • 400 mm

Force (kN)

  • 0.8 kN
  • 1.5 kN
  • 4.0 kN *
  • 7.0 kN *
  • 12.0 kN **
  • 17.0 kN **
  • * Requires 220V Power
  • ** Requires 480V Power

Voltage

  • 110V
  • 220V
  • 480V

Accessories

  • B - Buzzer
  • L - Colored Light

HMI

  • 1 - 10” HMI
  • 0 - No Interface

Description

Features:

  • Festo Electric Actuator kit
  • Human Machine Interface (HMI)
  • Two Hand No Tie-Down (THNTD) Safety Circuit
  • 2x OPTO-TOUCH Optical Touch Buttons
  • Emergency stop button (E-Stop)
  • LED light bulb
  • Pass/fail light
  • Force monitoring
  • 3-sided guarding
  • Customizable features
