JT&M - 1/2 Ton Adjustable Handle Lever Press – Model #AP-810-AH
Perfect Your Press! (5) Add-on Product Accessories Available
Need something more specific?
Specifications
Quick Overview
One of several versions in the AP-810 manual press series.
| AP-810-AH | |
|---|---|
| Force Capacity | 1/2 ton |
| Max Stroke Length | 9.5" |
| Throat Depth | 2.76" |
| Base Length | 7.06" |
| Base Width | 4.06" |
| Height | 11.63" |
| Force Ration | 9:1 |
| Travel per Revolution | 3" |
| Shipping Weight | 26 lbs. |
- 100% Manufactured in the USA
- FREE Application Testing
- Customized to YOUR Specifications

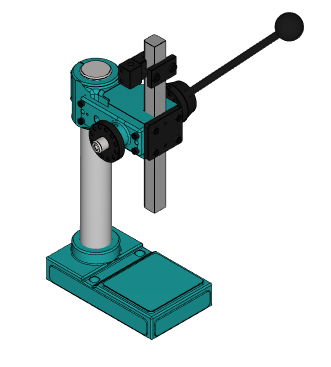

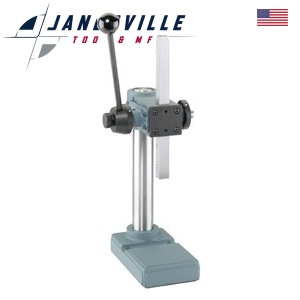

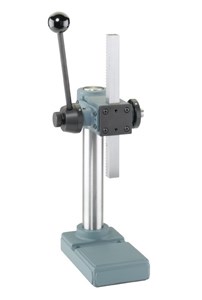

The AP-810-AH 1/2 ton adjustable lever arbor press is rated to withstand 1000 lbs. of force. This assembly press is ideal for small parts assembly, punching, shearing and staking of light gauge stock, metal, or plastic. The head can be adjusted for height with two (2) clamp screws. The press contains a 3/4 " square ground ram and an adjustable gib for continual accuracy.
Check out all 1/2 ton arbor presses from Janesville Tool
Contact Janesville Tool with questions or for more information.
Description
The AP-810-AH 1/2 ton adjustable lever arbor press is ideal for small parts assembly. It has a 1/2 ton force capacity and works best with light gauge stock, metal, and plastic. The model has a 9.5" max stroke length and its height can be adjusted with (2) clamp screws. The press has an adjustable grip for accuracy.
You may choose the AP-810 1/2 ton press base model or 2 other arrangements:
- Full stroke version - AP-810-FS 1/2 ton full stroke precision lever press
- With adjustable handle and full stroke - AP-810-AH-FS 1/2 ton adjustable handle full stroke press
This manual lever press can be customized to YOUR application.
The AP-810-AH arbor press may be built custom for industrial assembly, light duty, clean rooms, assembling jewelry, plastic, or PEM nuts. Janesville Tool & Manufacturing presses may be manufactured for a variety of purposes:
- Metal stamping
- Punching
- Cutting
- Broaching
- Rivets
- Forging
- Forming
- Assembly
- Insertion
- ...and much more.
Shop all manual lever press machines for sale online from Janesville Tool & Manufacturing.
Literature & Downloads
Options
Up-Stroke Limiter
Like the Adjustable Down Stop, the Up-Stroke Limiter clamps onto the ram of the press at any position. It is designed to limit the travel of the up-stroke in order to increase press productivity.
ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS
Adjustable Handle Model

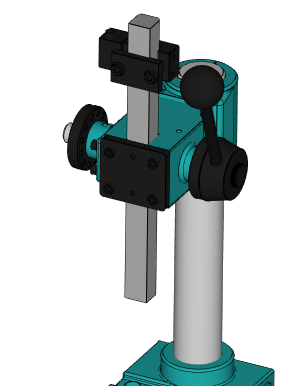

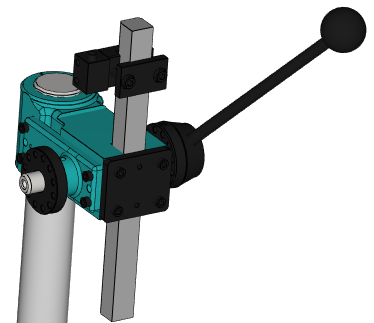

The Left/Right Adjustable Handle Press was designed to benefit the left-handed production worker, but it also can come in handy when the operator needs to hold tooling or parts with their right hand and operate the press from the left for assembly convenience and flow. The handle can be adjusted on either side in 30° increments without removing the ram of the press.
Model AP-810-AH Adjustable Handle Kit
THIS MODEL ALREADY HAS THE ADJUSTABLE HANDLE INCLUDED. CONTACT US FOR MORE DETAILS
Resettable Counter & Bracket
This Counter attaches to many of our manual presses and allows you to accurately track parts production.
Model PC-810 Resettable Counter
ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS
Multi-Position Fixtures
Our multi-position fixtures consist of a ground steel platen that can be indexed out from under the press ram to provide improved access to the fixture. This platen rides on precision fitted guide pins and bronze bushings. An adjustment screw is provided for accurate end stop positioning under the press ram. The multi-position fixture is a self-contained unit that can be mounted to our presses with two (2) screws.
Model 0632-Multi Position Fixture
ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS
Full Stroke Lock Model FS
JT&M Inc.’s full stroke mechanism presses are designed to eliminate the production of inferior parts caused by incomplete pressing. With the use of an anti-return lock system the operator cannot return the stroke before the operation is complete. The lock is active over the whole stroke, not just the last part of the stroke. The FS presses are equipped with an Adjustable Down Stop, Up-Stroke Limiter, and a lock release knob which can be used if the pressing operation needs to be aborted to avoid the making of a defective part. With repeat accuracy of +/-.005, the presses are ideal for small-parts production and precision assembly by installing a line of them each tooled for a specific operation.
Full Stroke MechanismADD TO YOUR ORDER USING THE AP-810-AH-FS PAGE OR CONTACT US FOR MORE DETAILS
Die Sets
An economical lean way to cut the high costs of purchasing multiple presses to perform different applications. By tooling up several die sets, one press can be used to achieve multiple assemblies. A wide range of Die Sets are ready for 24 hour delivery after receipt of your order. Special machining and custom applications are available, along with several options for all your necessary die set needs. All JT&M Inc. die sets come standard with hardened pins and bushings for long wear.
- A36 Steel Die Sets
- A36 Steel Die Set with Ball Bushings
- Flanged Stock Two Post Die Sets
- Power Die Sets
- Clean Room Die Sets
- Custom Die Sets
All Die Sets can be arranged for assembly with your JT&M Inc. manual or pneumatic arbor press at a minimal cost.
Value Added Services
Your design or our design, from concept to completion, let JT&M Inc. be your value added supplier.
Due to increasing demand from our customers, JT&M, Inc. is offering “Value Added Services” to better meet your needs for “One Stop Shopping” and “Turn Key Systems”.
Whether it’s a simple tapped hole in the end of a ram on one of our presses, or as complex as a complete die set or press assembly system, JT&M Inc. has equipment set up and ready for a quick turnaround utilizing the latest software, most common tooling, and fixturing available in manufacturing today.
