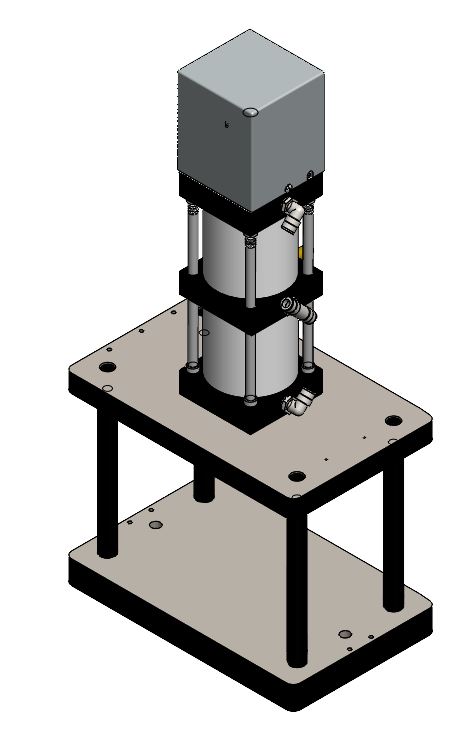

JT&M - 1 1/4 Ton Four Post 2 Stage Pneumatic Press – Model #A-5302

$7,794.00 SKU: A-5302

Specifications

One of three presses in the A-5000 series.

  A-5302A-5453A-5604
Force capacity  1 1/4 tons 1 3/4 tons 2 1/2 tons
Force at 60 psi  1,812 lbs 2,718 lbs 3,624 lbs
Force at 80 psi  2,416 lbs 3,624 lbs 4,832 lbs
Force at 100 psi  3,020 lbs 4,530 lbs 6,040 lbs
Stage cylinder  2 3 4
Base length  12.25" 12.25" 12.25"
Base width  5.75" 5.75" 5.75"
Height  35.2" 41.4" 47.7"

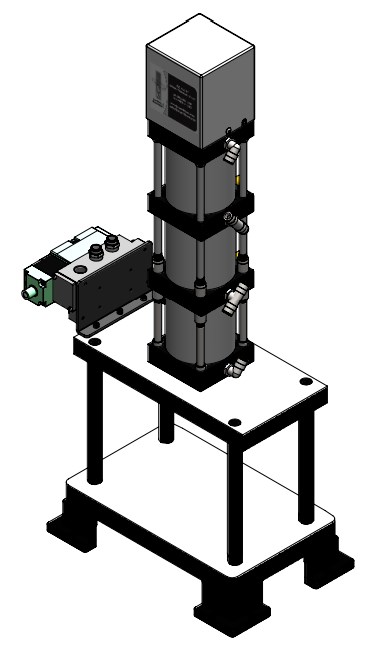

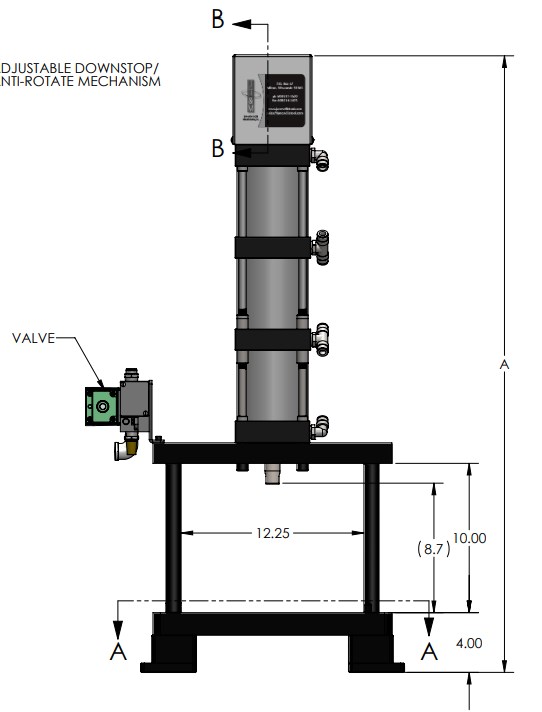

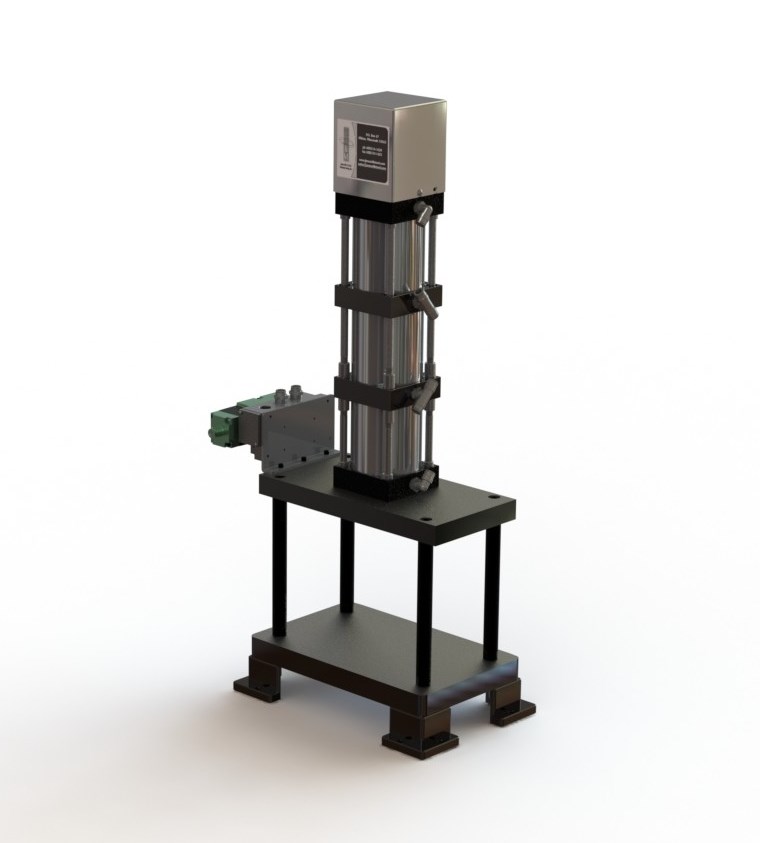

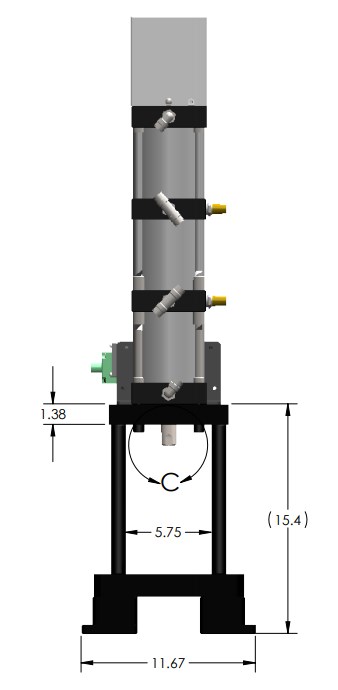

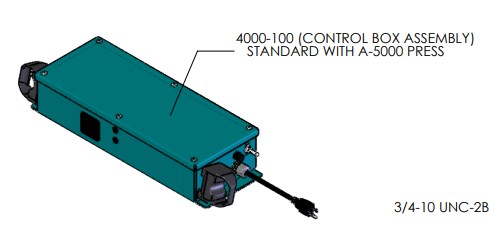

The A-5302 1 1/4 ton pneumatic arbor press consists of a precision machined top plate and a four-post bottom casting that incorporates a multistage cylinder, allowing the user a force up to 6120 pounds. Dual hand photo-optic anti-tie down / anti-repeat controls are standard. The control box is separate and may be mounted in front of the press or on the side of a table.

The A-5302 1 1/4 ton air press comes standard with a three-inch stroke. Alternate stroke lengths are available upon request.

Check out all 1 1/4 ton arbor presses from Janesville Tool

Contact Janesville Tool with questions or for more information.
