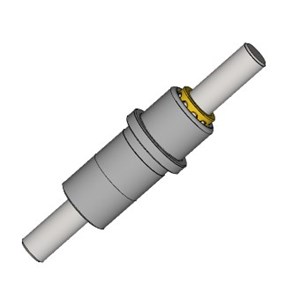

JT&M - 1/2" x 6" (L) Guide Post w/ Ball Retainer & Sleeve - Model #PR4

$212.00 SKU: PR4

Qty:

Need something more specific?

Request a Quote

Specs
Product Information

Specifications

Assy #	Post Dia.	Post Lgth.	Post Hole Dia.	Bush O.D.	Bush Lgth.	Bush Hole Dia.*	Ball Retainer Lgth.
PR1	3/8	3 1/2	.3740/.3745	3/4	2 1/2	.7515/.7518	2 1/2
PR2	3/8	5	.3740/.3745	3/4	2 1/2	.7515/.7518	2 1/2
PR3	1/2	5	.4990/.4995	1	2 1/2	1.0010/1.0013	2
PR4	1/2	6	.4990/.4995	1	2 1/2	1.0015/1.0018	2
PR5	3/4	6 3/4	.7490/.7495	1 3/8	2 1/2	1.3768/1.3772	2 1/2
PR6	1	9 7/8	.9990/.9995	1 3/4	2 1/2	1.7519/1.7523	2 1/2
PR7	1 1/4	9 7/8	1.2490/1.2495	2 1/4	2 1/2	2.2525/2.2521	2 1/2

Description

The PR4 Guide Post with Ball Retainer and Sleeve components are precisely matched for full contact preload operation. Die set components are packaged as a set to assure tolerance capability.

Guide pins are precision ground and made of case hardened steel. The ball retainers are made from gold anodized aluminum and contain a 25 millionth tolerance class chrome alloy ball that is held in place with 4 stakes. The ball-bearing bushings are ground and honed to exact tolerance from hardened steel.

Materials:

Guide pins - hardened steel
Ball retainers - gold anodized aluminum
Ball-bearings - chrome alloy
Ball-bearing bushings - hardened steel

Dimensions: 1/2" x 6"
