JT&M - 1/2 Ton Adjustable Handle Lever Press – Model #ILP-500-AH-SS
Need something more specific?
Specifications
One of several versions in the ILP-500 manual hand press series.
| ILP-500-AH-SS | |
|---|---|
| Force Capacity | 1/2 ton |
| Max Stroke Length | 6" |
| Throat Depth | 1.75" |
| Base Length | 5.54" |
| Base Width | 2.88" |
| Height | 7.75" |
| Force Ratio | 12:1 |
| Travel per Revolution | 2.5" |
| Shipping Weight | 16 lbs. |
- 100% Manufactured in the USA
- FREE Application Testing
- Customized to YOUR Specifications

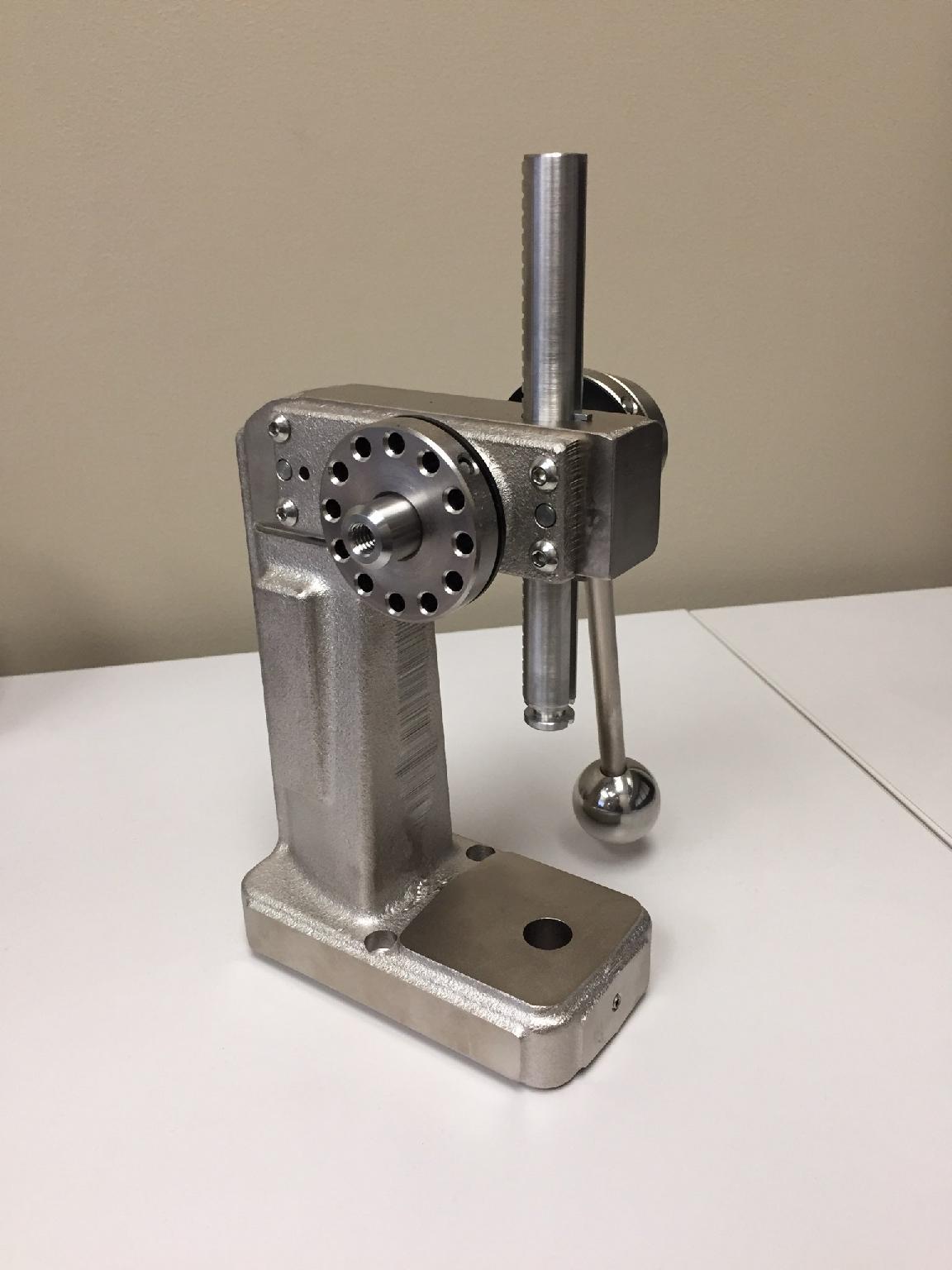

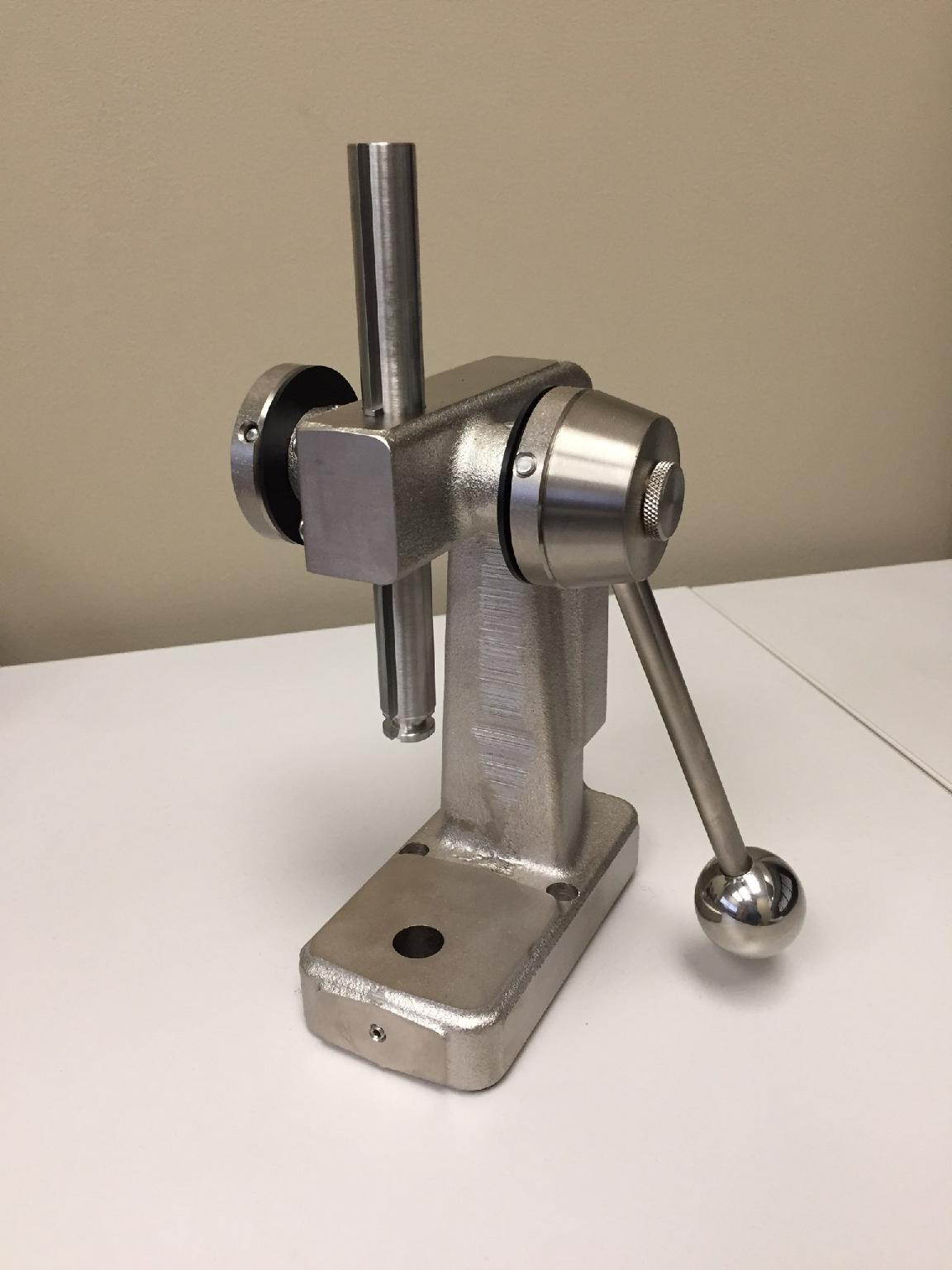

The base, column, handle and hub assembly are nickel plated, making the ILP-500-AH-SS suitable for most clean-room applications. The rack and pinion are made of stainless steel. The ILP-500-AH-SS 1/2 ton deep throat lever arbor press with adjustable handle utilizes a 5/8" diameter precision ram.

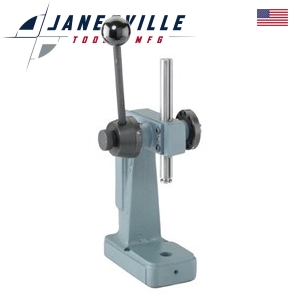

The ILP-500-AH 1/2 ton adjustable handle lever arbor press assures constant accuracy and automatic alignment. Many companies have found them ideal for small-parts production and assembly by installing a line of them, each tooled for a specific operation.
- Dimensions: 7 3/4"h x 5 1/2"d x 2 7/8"w.
- Opening: 5"h x 2 1/16" ram to column.
- Two 1/4" holes are provided in base for anchoring.
This press is ideal for precision assembly work and for shearing, shaping, and punching of light-gauge stock, metal, or plastic. The 5/8" diameter precision ground ram is keyed into the head and is in precise alignment with the hole in the base.
Check out all 1/2 ton arbor presses from Janesville Tool
Contact Janesville Tool with questions or for more information.
Description
You can configure each model individually by selecting the base model plus any additional attachments.
The ILP-500 1/2 ton manual press is available as a base model or with two other variations besides the -AH:
- Full stroke model (no adjustable handle) - ILP-500-FS 1/2 ton full stroke lever press
- Full stroke AND adjustable handle - ILP-500-AH-FS 1/2 ton adjustable handle full stroke lever press
A tough, USA made 1/2 ton lever press with unmatched durability & repeatability.
The ILP-500-AH lever press may be easily customized for industrial use, light duty, clean rooms, making jewelry, plastics, or PEM nuts. Our presses can be built for all sorts of different purposes:
- Stamping
- Punching
- Cutting
- Broaching
- Rivets & Eyelets
- Forging
- Forming
- Assembly
- Insertion
- ...and much more.
Shop precision manual lever presses available for sale from Janesville Tool & Manufacturing.
Literature & Downloads
Options
Any of the following options can be purchased with these models.
Up-Stroke Limiter
Like the Adjustable Down Stop, the Up-Stroke Limiter clamps onto the ram of the press at any position. It is designed to limit the travel of the up-stroke in order to increase press productivity.
ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS
Adjustable Down Stop
The Adjustable Down Stop is designed to clamp anywhere onto the ram of the press. An adjusting screw is supplied in the unit to assure accurate down stop position with every cycle.
Model ADS Adjustable Down Stop
ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS
Multi-Position Fixtures
Our multi-position fixtures consist of a ground steel platen that can be indexed out from under the press ram to provide improved access to the fixture. This platen rides on precision fitted guide pins and bronze bushings. An adjustment screw is provided for accurate end stop positioning under the press ram. The multi-position fixture is a self-contained unit that can be mounted to our presses with two (2) screws.
Model 0632-Multi Position Fixture (AP 810)
Model 0631-Multi Position Fixture (ILP-500)
ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS
Adjustable Handle Model
The Left/Right Adjustable Handle Press was designed to benefit the left-handed production worker, but it also can come in handy when the operator needs to hold tooling or parts with their right hand and operate the press from the left for assembly convenience and flow. The handle can be adjusted on either side in 30° increments without removing the ram of the press.
ADD TO YOUR ORDER ABOVE OR CONTACT US FOR MORE DETAILS
Resettable Counter & Bracket
This Counter attaches to many of our manual presses and allows you to accurately track parts production.
ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS
Die Sets
An economical lean way to cut the high costs of purchasing multiple presses to perform different applications. By tooling up several die sets, one press can be used to achieve multiple assemblies. A wide range of Die Sets are ready for 24 hour delivery after receipt of your order. Special machining and custom applications are available, along with several options for all your necessary die set needs. All JT&M Inc. die sets come standard with hardened pins and bushings for long wear.
- A36 Steel Die Sets
- A36 Steel Die Set with Ball Bushings
- Flanged Stock Two Post Die Sets
- Power Die Sets
- Clean Room Die Sets
- Custom Die Sets
All Die Sets can be arranged for assembly with your JT&M Inc. manual or pneumatic arbor press at a minimal cost.
