JT&M - 2 1/2 Ton Four Post 4 Stage Pneumatic Press – Model #AP-9604
Perfect Your Press! (8) Add-on Product Accessories Available
Need something more specific?
Specifications
| AP-9604 | AP-9302 | AP-9453 | |
|---|---|---|---|
| Force capacity | 2 1/2 tons | 1 1/4 tons | 1 3/4 tons |
| Force at 60 psi | 3,624 lbs | 1,812 lbs | 2,718 lbs |
| Force at 80 psi | 4,832 lbs | 2,416 lbs | 3,624 lbs |
| Force at 100 psi | 6,040 lbs | 3,020 lbs | 4,530 lbs |
| Stage cylinder | 4 | 2 | 3 |
| Base length | 15" | 15" | 15" |
| Base width | 14.25" | 14.25" | 14.25" |
| Height | 45.3" | 32.9" | 39.1" |
- 100% manufactured in the USA
- FREE application testing
- Customized to YOUR specifications
The AP-9604 2 1/2 ton pneumatic arbor press consists of a precision machined top plate and a four-post bottom base that incorporates a multistage cylinder, allowing the user a force up to 6120 pounds. Dual hand photo-optic anti-tie down / anti-repeat controls are standard.
The AP-9604 2 1/2 ton air press comes standard with a three-inch stroke. Alternate stroke lengths are available upon request.
The AP-9604 Comes Standard With:
- Adjustable Opto-Touch Buttons.
- Three-Sided Guarding.
- Internal Timer Kit.
- Air Filter and Regulator.
- Anti-Repeat - Anti-Tie Down Controls.
- Adjustable Down Stop and Anti-Rotate Mechanism.
Contact Janesville Tool with questions or for more information.
Description
You can configure each model individually by selecting the base model plus any additional attachments. If you need to purchase more than one of the same attachment, please go to the Options tab to the right.
*Pneumatic presses usually ship in 1 to 2 business days.
*Product specifications and pricing subject to change without notice.
*Includes adjustable down stop/anti-rotate mechanism.
Press Dimensions
Notes:

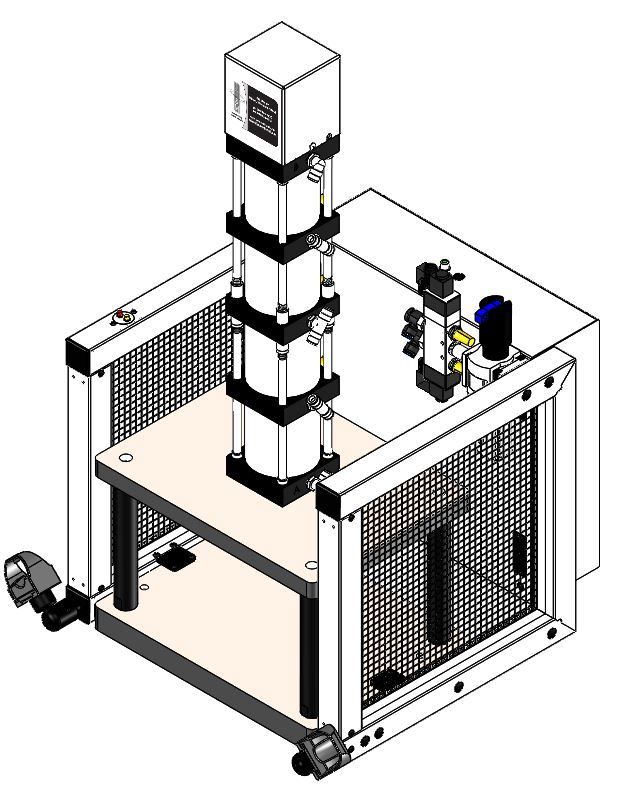

- AP-9604 shown
- 10" long posts standard - optional lengths available all pneumatic arbor presses available for sale from Janesville Tool & Manufacturing.
Literature & Downloads
Options
Air Filter/Regulators
Recommended for the P-9604 pneumatic arbor press to remove moisture and to allow the user accurate air supply pressure.
Model 544 air filter/regulatorUsed for the P-9604. Comes standard with 1/2" N.P.T ports.
ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS
Timer Delay Kits
Allows user delay time of .1 to 999 hours. Compatible with the A-5302 arbor press.
Model T-10BP timer delay kitADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS
Dual Photo Optic Palm Buttons
Buttons are ergonomically designed to eliminate hand, wrist, and arm stress associated with repeated switch operation and require no physical pressure to operate the A-5302 press.
Model -OT dual palm buttonsADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS
Quick Exhaust Valve
The valve allows exhaust air to be exhausted at the cylinder rather than the flow controls on the valve to speed up press cycle. The valve is recommended for use on the upstroke only.
Model 523 exhaust valveADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS
Tool Adapter
Our tool adapter is designed for easy assembly and disassembly of JT&M's die sets. The tool adapter threads into the ram of the cylinder with a 1/2-13" thread for 1-3/4" and 3" bore for the A-5302 arbor press. Choice of lengths include 1-1/2", 2-1/2", 3-1/2", & 4-1/2".
Model TA Tool Adapter 3/4" - 1 1/2" Length
Model TA Tool Adapter 3/4" - 2 1/2" Length
Model TA Tool Adapter 3/4" - 3 1/2" Length
Model TA Tool Adapter 3/4" - 4 1/2" Length
ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS
Air Press Guarding
Cost-effective guarding is available for the A-5302 arbor press. The rigidity of the wire mesh, aluminum interlocking frame, and quality construction will prevent any intrusion during press operation.
Model G-01235 3-sided press guardNote—Point of operation safety guarding or devices is the responsibility of the employer (user) of the machine as provided in ANSI B-11:1 as published by the American National Standards Institute.
ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS
Die Sets
An economical lean way to cut the high costs of purchasing multiple presses to perform different applications. By tooling up several die sets, one press can be used to achieve multiple assemblies. A wide range of Die Sets are ready for 24 hour delivery after receipt of your order. Special machining and custom applications are available, along with several options for all your necessary die set needs. All JT&M Inc. die sets come standard with hardened pins and bushings for long wear.
- A36 Steel Die Sets
- A36 Steel Die Set with Ball Bushings
- Flanged Stock Two Post Die Sets
- Power Die Sets
- Clean Room Die Sets
- Custom Die Sets
All Die Sets can be arranged for assembly with your JT&M Inc. manual or pneumatic arbor press at a minimal cost.
Light Curtain
The Light Curtain option for JT&M Inc. pneumatic presses comes standard with three-sided guarding and a 15” light curtain. If the light curtain is broken during operation, the pressing operation is stopped. This helps ensure complete operator and co-worker safety.
Force Monitoring
Force monitoring assures quality by monitoring force during the pressing process. Available on all pneumatic presses this option allows the user a “Good Window” indicator for the pressing cycle. The system utilizes a load cell with a digital readout and prox switch for end of stroke reading. If the pressing cycle is not within the “Good Window” parameters the press is locked out, indicating a bad pressing cycle, and a keyed reset is used to return the press cylinder.
Value Added Services
Your design or our design, from concept to completion, let JT&M Inc. be your value added supplier.
Due to increasing demand from our customers, JT&M, Inc. is offering “Value Added Services” to better meet your needs for “One Stop Shopping” and “Turn Key Systems”.
Whether it’s a simple tapped hole in the end of a ram on one of our presses, or as complex as a complete die set or press assembly system, JT&M Inc. has equipment set up and ready for a quick turnaround utilizing the latest software, most common tooling, and fixturing available in manufacturing today.
Value added services
