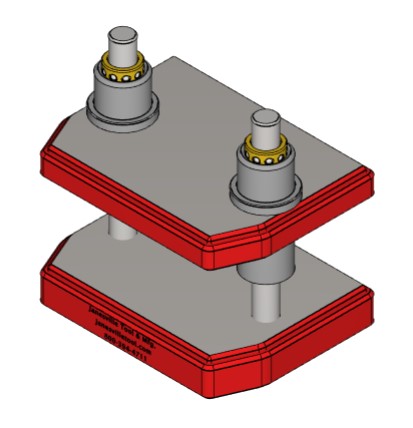

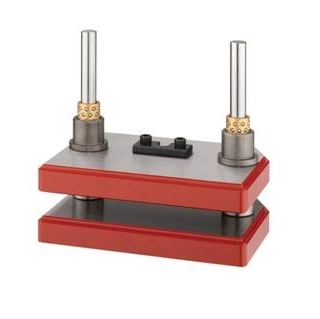

JT&M - Die Set with Linear Ball Bushings - Model #3MDSB
Perfect Your Press! (1) Add-on Product Accessories Available
Need something more specific?
Specifications
| Model | D | W | B | S | PC | PD | PL | WW | W1 | "X" | "Y" | RC |
| #2 MDSB | 2 7/8 | 3 1/2 | 3/4 | 9/16 | 1 7/16 | 3/8 | 3.5 | 2 | 2 5/8 | 3/4 | 2 1/2 | 1.31 |
| #3 MDSB | 3 3/4 | 5 | 13/16 | 5/8 | 2 | 1/2 | 5 | 3 | 4 1/8 | 1 | 2 1/2 | 1.56 |
| #4 MDSB | 4 3/8 | 6 1/2 | 13/16 | 13/16 | 2 3/8 | 1/2 | 5 | 4 3/8 | 5 3/8 | 1 | 2 1/2 | 1.81 |
| #5 MDSB | 5 | 8 1/2 | 1 | 1 | 2 3/4 | 3/4 | 6 3/4 | 5 5/8 | 7 5/8 | 1 3/8 | 2 1/2 | 2.19 |
| #6 MDSB | 6 | 9 1/2 | 1 | 1 | 3 1/4 | 3/4 | 6 3/4 | 6 5/8 | 8 1/2 | 1 3/8 | 2 1/2 | 2.69 |
| #7 MDSB | 7 | 10 3/8 | 1 | 1 | 3 1/2 | 3/4 | 6 3/4 | 7 | 9 1/8 | 1 3/8 | 2 1/2 | 3.44 |
Note: Ball Bearings will migrate out after 2.5" of travel
View the #3 MDS die set with NO linear ball bushings.
Shop all die sets for press tools available for sale online from Janesville Tool & Manufacturing.
Description
Features:
• A-36 Steel
• Hardened Pins For Long Wear
• Hardened Bushings For Close Fits
• Precision Ground Surfaces
• Alternate Pin Lengths
• Alternate Pin Positions (available upon request)

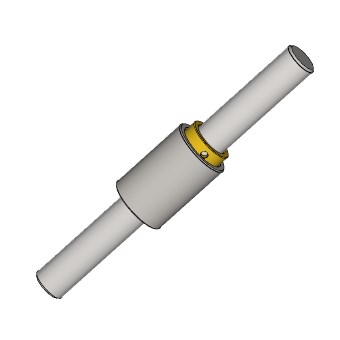

• Linear Ball Bushings
• Arranged For Assembly - Add Suffix (-A)
Any of our die sets can be customized. Tell us about your application:
*Product specifications and pricing subject to change without notice.
(-A) ARRANGED FOR ASSEMBLY, INCLUDES: ATTACHMENT PLATE MOUNTED ON TOP AND ¼ -20 TAPPED HOLE FROM BOTTOM (HOLE DOES NOT BREAK THRU)(ORDERING EXAMPLE #3MDSB-A)
Options
The following options can be purchased:
• Non Standard Pin Length
• Alternate Pin Position
• Assembly Charge, Mini Die Set to Press
• Model 500-19 Attachment Plate
• Model 500-15 Lower Bushing
