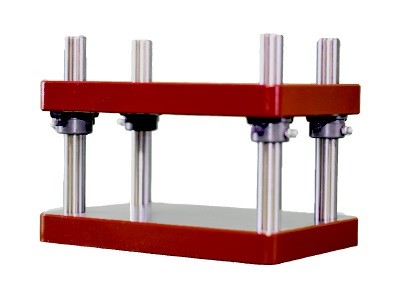

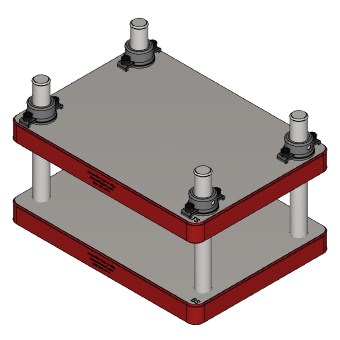

JT&M - Four Post Die Set With Hardened Bushings - Model #4P8X8
$807.00
SKU: 4P8X8
Qty:
Need something more specific?
Specifications
4P8X8 steel 4 post die sets are precision surface ground and come equipped with hardened ground bushings, allowing for close tolerance fit. A-36 Steel with hardened pins for extended wear.
Shop all die sets for press tools available for sale online from Janesville Tool & Manufacturing.
| Part # | A | B | C | D | E | F | G | H | J | K | L | M | N | P | PD | PL |
| 4P6X6 | 7.3750 | 4.88 | 3.7500 | - | 8.19 | - | 3.6250 | 6.08 | 6.63 | 9.00 | 1.00 | 1.00 | 2.88 | 6.00 | .7500 | 6.75 |
| 4P8X8 | 9.3750 | 6.88 | 5.7500 | - | 10.19 | - | 5.6250 | 8.08 | 8.63 | 11.00 | 1.00 | 1.00 | 4.88 | 8.00 | .7500 | 6.75 |
Description
Features:
• A-36 Steel
• Hardened Pins For Long Wear
• Hardened Bushings For Close Fits
• Precision Ground Surfaces
• Longer Pins (available upon request)
• Arranged For Assembly - Add Suffix (-A)
Janesville Tool die sets are available for customization:
Options
Janesville Tool can customize any die set to meet your needs. Contact us for more information.
