JT&M - Die Set With Hardened Bushings - Model #5MDS
Perfect Your Press! (1) Add-on Product Accessories Available
Need something more specific?
Specifications
| Model | D | W | B | S | PC | PD | PL | WW | W1 | "X" | "Y" | RC |
| #1 MDS | 2 1/4 | 2 5/8 | 5/8 | 1/2 | 1 1/16 | 5/16 | 3 | 1 9/16 | 2 1/8 | 1/2 | 3/4 | 1.12 |
| #2 MDS | 2 7/8 | 3 1/2 | 3/4 | 9/16 | 1 7/16 | 3/8 | 3 1/2 | 2 1/8 | 2 5/8 | 5/8 | 1 | 1.31 |
| #3 MDS | 3 3/4 | 5 | 13/16 | 5/8 | 2 | 1/2 | 5 | 3 1/4 | 4 1/8 | 3/4 | 1 3/8 | 1.56 |
| #4 MDS | 4 3/8 | 6 1/2 | 13/16 | 13/16 | 2 3/8 | 5/8 | 5 | 4 3/8 | 5 3/8 | 7/8 | 1 1/4 | 1.81 |
| #5 MDS | 5 | 8 1/2 | 1 | 1 | 2 3/4 | 3/4 | 6 3/4 | 5 5/8 | 7 5/8 | 1 3/8 | 2 1/2 | 2.19 |
| #6 MDS | 6 | 9 1/2 | 1 | 1 | 3 1/4 | 3/4 | 6 3/4 | 6 5/8 | 8 1/2 | 1 3/8 | 2 1/2 | 2.69 |
| #7 MDS | 7 | 10 3/8 | 1 | 1 | 3 1/2 | 3/4 | 6 3/4 | 7 | 9 1/8 | 1 3/8 | 2 1/2 | 3.44 |

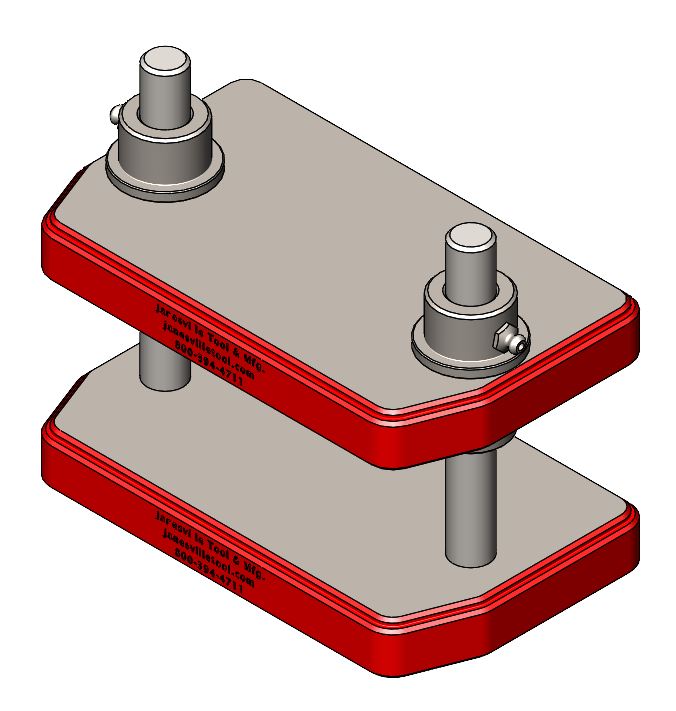

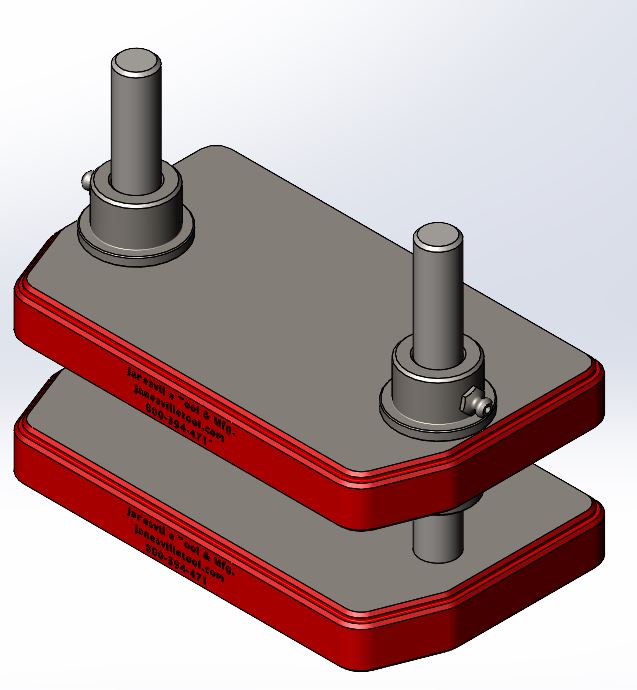

#5 MDS steel die sets are precision surface ground and come equipped with hardened ground bushings, allowing for close tolerance fit. A-36 Steel with hardened pins for extended wear.
Browse all press tool die sets available for sale online from Janesville Tool & Manufacturing.
Description
Features:
• A-36 Steel
• Hardened Pins For Long Wear
• Hardened Bushings For Close Fits
• Precision Ground Surfaces
• Alternate Pin Lengths
• Alternate Pin Positions (available upon request)
• Linear Ball Bushings
• Arranged For Assembly - Add Suffix (-A)
Janesville Tool die sets can be customized for specific applications:
*Product specifications and pricing subject to change without notice.
(-A) ARRANGED FOR ASSEMBLY, INCLUDES: ATTACHMENT PLATE MOUNTED ON TOP AND ¼ -20 TAPPED HOLE FROM BOTTOM (HOLE DOES NOT BREAK THRU)(ORDERING EXAMPLE #3MDS-A)
Options
The following options can be purchased:
• Alternate Pin Position
• Assembly Charge, Mini Die Set to Press
• Model 500-19 Attachment Plate
• Model 500-15 Lower Bushing
