JT&M - 1 Ton Adjustable Precision Pneumatic Press – Model #EC-235
Perfect Your Press! (6) Add-on Product Accessories Available
Need something more specific?
Specifications
One of two presses in the E-235/EC-235 series.
| EC-235 | E-235 | |
|---|---|---|
| Force capacity | 1 ton | 1 ton |
| Force at 60 psi | 1,410 lbs | 1,410 lbs |
| Force at 80 psi | 1,880 lbs | 1,880 lbs |
| Force at 100 psi | 2,350 lbs | 2,350 lbs |
| Cylinder diameter | 4.50" | 4.50" |
| Std. stroke length | 3.00" | 3.00" |
| Base length | 15" | 15" |
| Base width | 6" | 6" |
| Height | 30.16" | 30.16" |
- 100% Manufactured in the USA
- FREE Application Testing
- Customized to YOUR Specifications

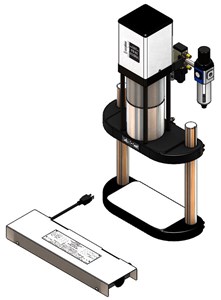

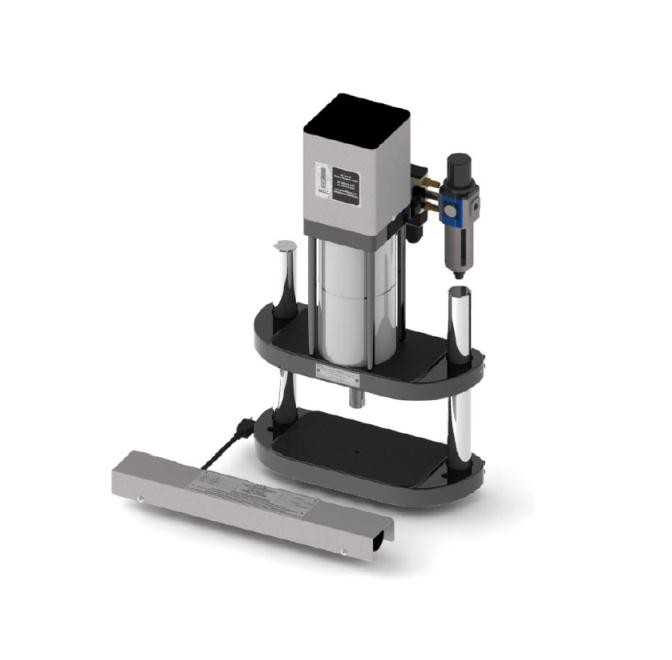

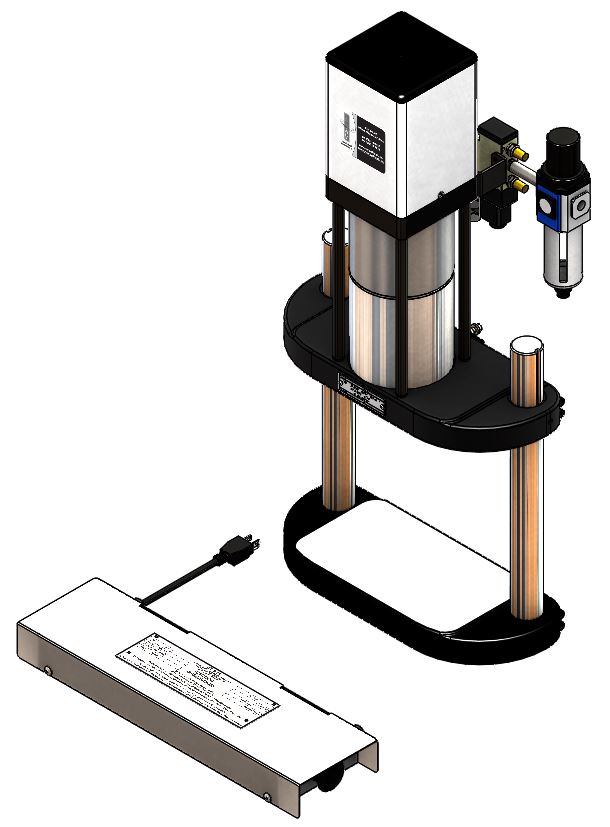

The EC-235 (Economy) 1 ton pneumatic arbor press is ideal for small parts assembly, punching, shearing, and staking of light gauge metal or plastic. The head of the press may be adjusted for height with two (2) clamping screws on the posts and provides a safety dowel to prevent the press head from dropping onto the base. Longer columns and stroke length can be provided on special request.
EC-235 1 ton arbor air press standard features & specifications:
- Adjustable flow controls up & down stroke
- Filter & Regulator
- Non lube operation
- Two hand no tie down - non repeat controls 110v - 1amp
- Three inch stroke
- Adjustable down stop
- Anti-Rotate Mechanism for cylinder
- Powder coated frame and control box
Check out all 1 ton arbor presses from Janesville Tool
Contact Janesville Tool with questions or for more information.
Description
2 Stage Adjustable Precision Pneumatic Presses
Shop all pneumatic arbor press machines available for sale from Janesville Tool & Manufacturing.
Literature & Downloads
Options
Any of the following options can be purchased with these models.
Quick Exhaust Valve
The valve allows exhaust air to be exhausted at the cylinder rather than the flow controls on the valve to speed up press cycle. The valve is recommended for use on the upstroke only.
Model 523 Exhaust ValveADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR
Tool Adapter
Our tool adapter is designed for easy assembly and disassembly of JT&M's die sets. The tool adapter threads into the ram of the cylinder with a choice of lengths:
ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS
Die Sets
An economical lean way to cut the high costs of purchasing multiple presses to perform different applications. By tooling up several die sets, one press can be used to achieve multiple assemblies. A wide range of Die Sets are ready for 24 hour delivery after receipt of your order. Special machining and custom applications are available, along with several options for all your necessary die set needs. All JT&M Inc. die sets come standard with hardened pins and bushings for long wear.
- A36 Steel Die Sets
- A36 Steel Die Set with Ball Bushings
- Flanged Stock Two Post Die Sets
- Power Die Sets
- Clean Room Die Sets
- Custom Die Sets
All Die Sets can be arranged for assembly with your JT&M Inc. manual or pneumatic arbor press at a minimal cost.
Light Curtain
The Light Curtain option for JT&M Inc. pneumatic presses comes standard with three-sided guarding and a 15” light curtain. If the light curtain is broken during operation, the pressing operation is stopped. This helps ensure complete operator and co-worker safety.
Force Monitoring
Force monitoring assures quality by monitoring force during the pressing process. Available on all pneumatic presses this option allows the user a “Good Window” indicator for the pressing cycle. The system utilizes a load cell with a digital readout and prox switch for end of stroke reading. If the pressing cycle is not within the “Good Window” parameters the press is locked out, indicating a bad pressing cycle, and a keyed reset is used to return the press cylinder.
Value Added Services
Your design or our design, from concept to completion, let JT&M Inc. be your value added supplier.
Due to increasing demand from our customers, JT&M, Inc. is offering “Value Added Services” to better meet your needs for “One Stop Shopping” and “Turn Key Systems”.
Whether it’s a simple tapped hole in the end of a ram on one of our presses, or as complex as a complete die set or press assembly system, JT&M Inc. has equipment set up and ready for a quick turnaround utilizing the latest software, most common tooling, and fixturing available in manufacturing today.
Value Added Services
