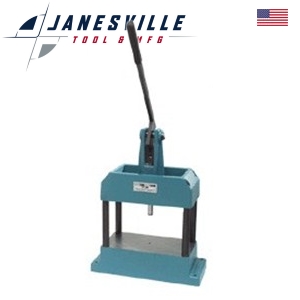

JT&M - 4 Ton Precision Cam Press – Model #C-5000
Perfect Your Press! (2) Add-on Product Accessories Available
Need something more specific?
Specifications
| C-5000 | |
|---|---|
| Force Capacity | 4 tons |
| Max Stroke Length | 1" |
| Throat Depth | 5.75" |
| Base Length | 10.06" |
| Base Width | 16" |
| Height | 22.7" |
| Force Ratio | 71:1 |
| Ram Travel | 1" |
| Shipping Weight | 165 lbs. |
- 100% Manufactured in the USA
- FREE Application Testing
- Customized to YOUR Specifications

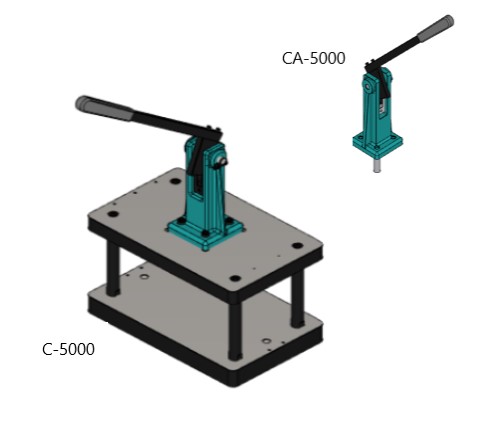

The C-5000 4 ton cam manual hand press is rated to withstand 8000 lbs. of force. The C-5000 4 ton cam press is ideal for circuit board assembly, parts assembly, staking, crimping, and for stamping plastics. Its 3/4" ram guidance assures accuracy and smooth press operation with little deflection. Longer posts can be added to increase throat height. The upper cam bracket assembly (CA-5000) can be purchased separately to mount on your custom made press frame.
Features:
• Low Deflection
• 2 Bushing Guidance
• 4 Post Design
Contact Janesville Tool with questions or for more information.
Description
You can configure each model individually by selecting the base model plus any additional attachments.
Shop all manual hand press machines available for sale from Janesville Tool & Manufacturing.
Options
Any of the following options can be purchased with these models.
Die Sets
An economical lean way to cut the high costs of purchasing multiple presses to perform different applications. By tooling up several die sets, one press can be used to achieve multiple assemblies. A wide range of Die Sets are ready for 24 hour delivery after receipt of your order. Special machining and custom applications are available, along with several options for all your necessary die set needs. All JT&M Inc. die sets come standard with hardened pins and bushings for long wear.
- A36 Steel Die Sets
- A36 Steel Die Set with Ball Bushings
- Flanged Stock Two Post Die Sets
- Power Die Sets
- Clean Room Die Sets
- Custom Die Sets
All Die Sets can be arranged for assembly with your JT&M Inc. manual or pneumatic arbor press at a minimal cost.
Value Added Services
Your design or our design, from concept to completion, let JT&M Inc. be your value added supplier.
Due to increasing demand from our customers, JT&M, Inc. is offering “Value Added Services” to better meet your needs for “One Stop Shopping” and “Turn Key Systems”.
Whether it’s a simple tapped hole in the end of a ram on one of our presses, or as complex as a complete die set or press assembly system, JT&M Inc. has equipment set up and ready for a quick turnaround utilizing the latest software, most common tooling, and fixturing available in manufacturing today.
