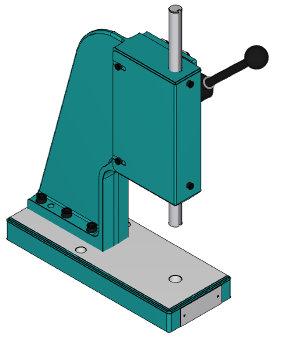

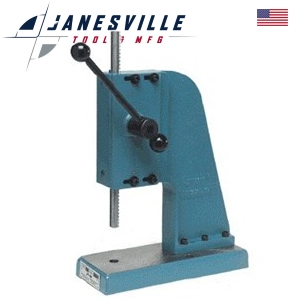

JT&M - 1 Ton Precision Variable Ratio Press – Model #T-967
Perfect Your Press! (3) Add-on Product Accessories Available
Need something more specific?
Specifications
| T-967 | |
|---|---|
| Force Capacity | 1 ton |
| Max Stroke Length | 14.75" |
| Throat Depth | 4.375" |
| Base Length | 13" |
| Base Width | 5" |
| Height | 16" |
| Force Ratio | 7:1 |
| Travel per Revolution | 7" |
| Shipping Weight | 62 lbs. |
- 100% Manufactured in the USA
- FREE Application Testing
- Customized to YOUR Specifications

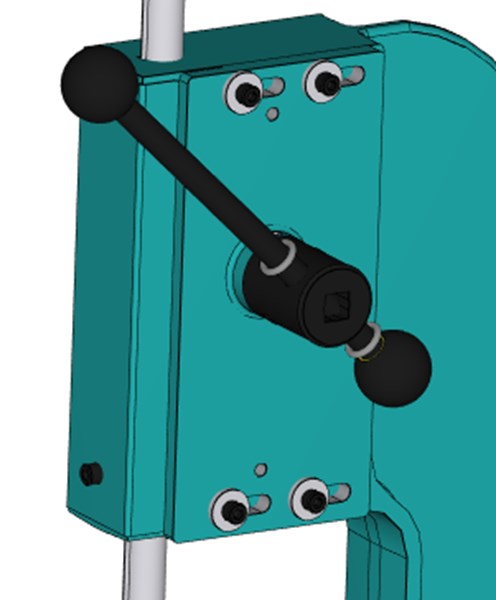

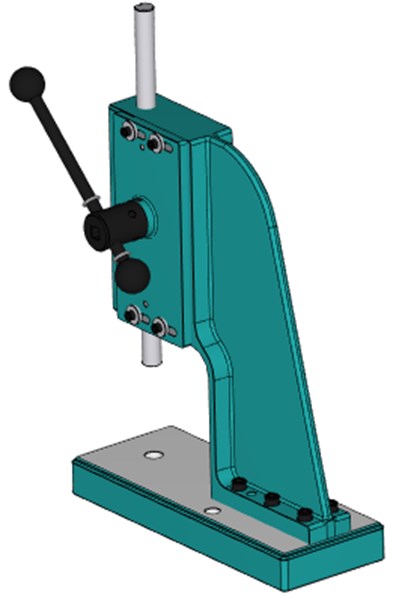

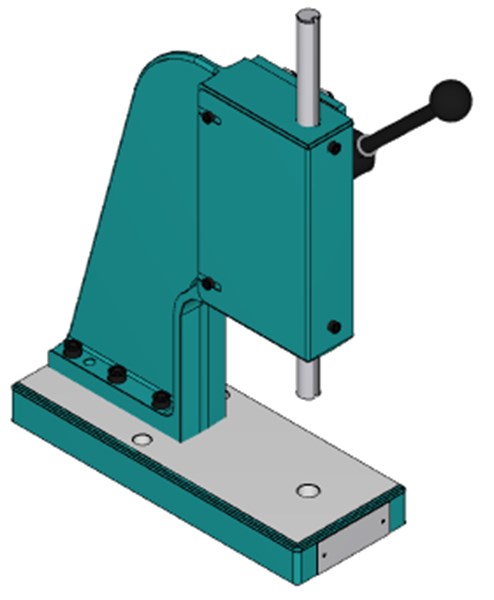

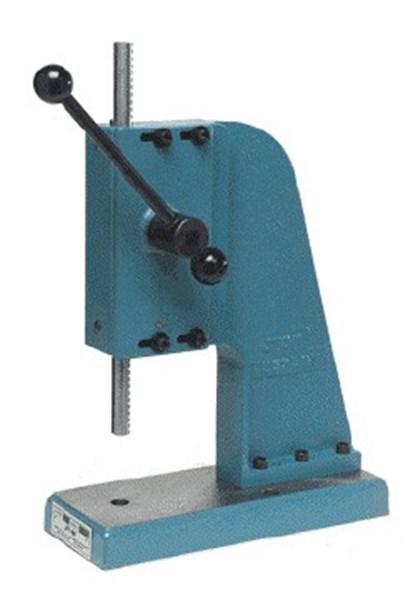

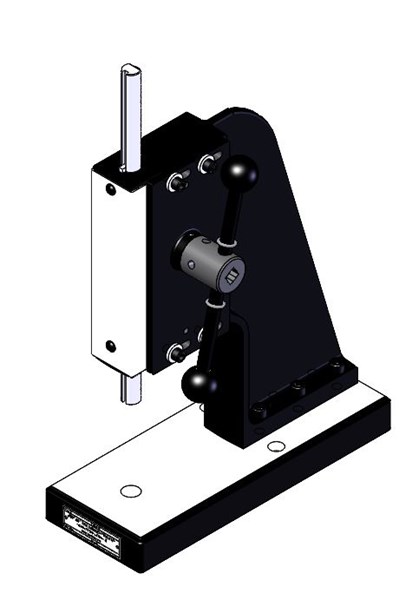

The T-967 1 ton variable ratio arbor press is rated to withstand 2000 lbs. of force. These allow the user 7" of vertical stroke per revolution of the handle. Ratios are 16:1, 9:1, or 7:1 depending on the gear selected. The press is pre-machined to accept either of the three pinion gears, however, the basic unit is provided with only one (1) gear. Additional gears to obtain alternate ratios are available as optional items. The precision ground ram is in direct alignment with the hole in the base, allowing the tool designer easy alignment of punch and die tooling.
Check out all 1 ton arbor presses from Janesville Tool
Contact Janesville Tool with questions or for more information.
Description
You can configure each model individually by selecting the base model plus any additional attachments.
Shop manual press machines available for sale online from Janesville Tool & Manufacturing.
Literature & Downloads
Options
Any of the following options can be purchased with these models.
Up-Stroke Limiter
Like the Adjustable Down Stop, the Up-Stroke Limiter clamps onto the ram of the press at any position. It is designed to limit the travel of the up-stroke in order to increase press productivity.
ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS
Adjustable Down Stop
The Adjustable Down Stop is designed to clamp anywhere onto the ram of the press. An adjusting screw is supplied in the unit to assure accurate down stop position with every cycle.
Model 967-10-Adjustable Down Stop
ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS
Resettable Counter & Bracket
This Counter attaches to many of our manual presses and allows you to accurately track parts production.
ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS
Die Sets
An economical lean way to cut the high costs of purchasing multiple presses to perform different applications. By tooling up several die sets, one press can be used to achieve multiple assemblies. A wide range of Die Sets are ready for 24 hour delivery after receipt of your order. Special machining and custom applications are available, along with several options for all your necessary die set needs. All JT&M Inc. die sets come standard with hardened pins and bushings for long wear.
- A36 Steel Die Sets
- A36 Steel Die Set with Ball Bushings
- Flanged Stock Two Post Die Sets
- Power Die Sets
- Clean Room Die Sets
- Custom Die Sets
All Die Sets can be arranged for assembly with your JT&M Inc. manual or pneumatic arbor press at a minimal cost.
Value Added Services
Your design or our design, from concept to completion, let JT&M Inc. be your value added supplier.
Due to increasing demand from our customers, JT&M, Inc. is offering “Value Added Services” to better meet your needs for “One Stop Shopping” and “Turn Key Systems”.
Whether it’s a simple tapped hole in the end of a ram on one of our presses, or as complex as a complete die set or press assembly system, JT&M Inc. has equipment set up and ready for a quick turnaround utilizing the latest software, most common tooling, and fixturing available in manufacturing today.
