JT&M - 1/8 Ton Precision Deep Throat Lever Press – Model #DT-6000
Perfect Your Press! (3) Add-on Product Accessories Available
Need something more specific?
Specifications
One of many versions in the DT-6000 manual press series.
| DT-6000 | |
|---|---|
| Force Capacity | 1/8 ton |
| Max Stroke Length | 12" |
| Throat Depth | 11.9" |
| Base Length | 19.5" |
| Base Width | 9.88" |
| Height | 14.75" |
| Force Ratio | 9:1 |
| Travel per Revolution | 3" |
| Shipping Weight | 96 lbs. |
- 100% Manufactured in the USA
- FREE Application Testing
- Customized to YOUR Specifications

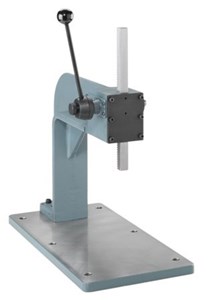

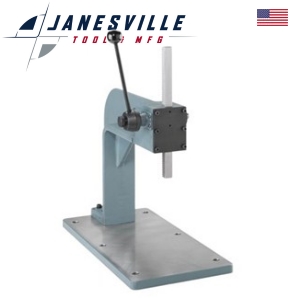

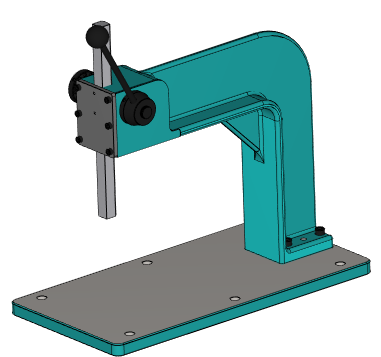

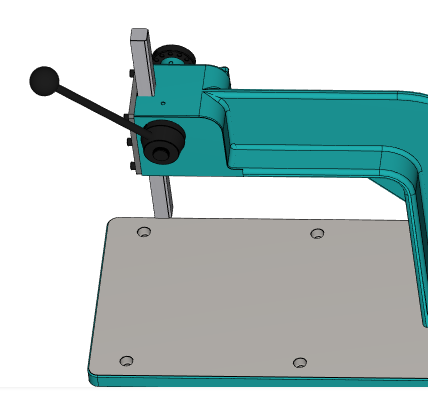

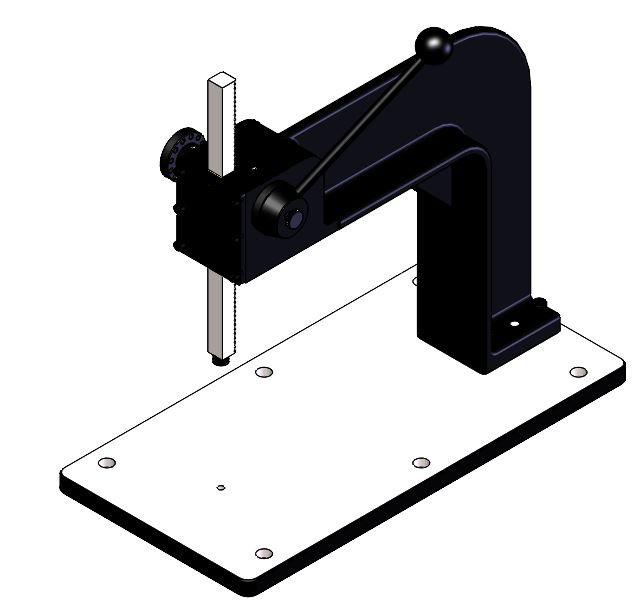

The DT-6000 1/8 ton deep throat lever arbor press allows the user throat clearance of 11 5/8" and overall height of 10" under the ram. This precision assembly press consists of a ground steel base and separate ductile iron column. If needed the clearance under the column can be increased by adding a riser block between the steel base and column flange.
The press has a force rating of 200 lbs. and contains a 3/4" square ground ram with an adjustable gib for continual accuracy. This press is ideal for circuit board assembly work.
Check out all 1/8th ton arbor presses from Janesville Tool
Contact Janesville Tool with questions or for more information.
Description
You can configure each model individually by selecting the base model plus any additional attachments.
You may also purchase the full stroke version - the DT-6000-FS 1/8 ton precision deep throat lever press.
A custom built deep throat press with unparalleled durability & repeatability.
The DT-500-AH lever press may be customized for industrial use, light duty assembly, cleanrooms, jewelrymaking, plastic materials, or PEM nuts. Our presses can be built for all sorts of different purposes:
- Metal stamping
- Punching
- Cutting
- Broaching
- Rivets
- Forging
- Forming
- Assembly
- Insertion
- ...and much more.
Shop manual lever presses available for sale online from Janesville Tool & Manufacturing.
Literature & Downloads
Options
Any of the following options can be purchased with these models.
Up-Stroke Limiter
Like the Adjustable Down Stop, the Up-Stroke Limiter clamps onto the ram of the press at any position. It is designed to limit the travel of the up-stroke in order to increase press productivity.
ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS
Die Sets
An economical lean way to cut the high costs of purchasing multiple presses to perform different applications. By tooling up several die sets, one press can be used to achieve multiple assemblies. A wide range of Die Sets are ready for 24 hour delivery after receipt of your order. Special machining and custom applications are available, along with several options for all your necessary die set needs. All JT&M Inc. die sets come standard with hardened pins and bushings for long wear.
- A36 Steel Die Sets
- A36 Steel Die Set with Ball Bushings
- Flanged Stock Two Post Die Sets
- Power Die Sets
- Clean Room Die Sets
- Custom Die Sets
All Die Sets can be arranged for assembly with your JT&M Inc. manual or pneumatic arbor press at a minimal cost.
Value Added Services
Your design or our design, from concept to completion, let JT&M Inc. be your value added supplier.
Due to increasing demand from our customers, JT&M, Inc. is offering “Value Added Services” to better meet your needs for “One Stop Shopping” and “Turn Key Systems”.
Whether it’s a simple tapped hole in the end of a ram on one of our presses, or as complex as a complete die set or press assembly system, JT&M Inc. has equipment set up and ready for a quick turnaround utilizing the latest software, most common tooling, and fixturing available in manufacturing today.
