JT&M - 1/4 Ton Adjustable Handle Deep Throat Lever Press – Model #DT-500-AH
Perfect Your Press! (2) Add-on Product Accessories Available
Need something more specific?
Specifications
One of several versions in the DT-500 manual hand press series.
| DT-500-AH | |
|---|---|
| Force Capacity | 1/4 ton |
| Max Stroke Length | 6" |
| Throat Depth | 6.3" |
| Base Length | 12" |
| Base Width | 5" |
| Height | 7.82" |
| Force Ratio | 12:1 |
| Travel per Revolution | 2.5" |
| Shipping Weight | 31 lbs. |
- 100% Manufactured in the USA
- FREE Application Testing
- Customized to YOUR Specifications

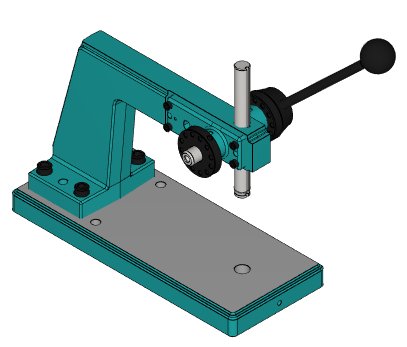

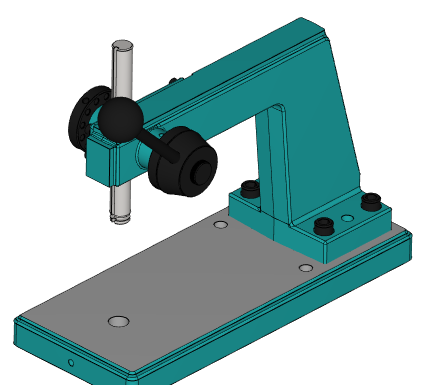

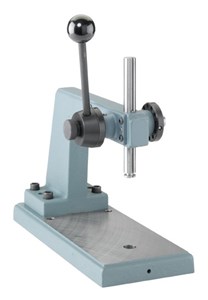

The DT-500-AH 1/4 ton deep throat lever arbor press with adjustable handle utilizes the same 5/8" diameter precision ram as the popular ILP-500, and allows the user throat clearance of 6 inches.
The model DT-500 precision assembly press consists of a ground cast iron base and separate column. The base consists of two (2) mounting holes for 1/4" socket cap screws. These holes can be tapped from the bottom for 5/16" screws on special request. The clearance under the column can be increased by adding a riser block between the ground base and column flange. The 5/8" diameter hole in the base is precisely aligned to the ram allowing for simplified tooling designs.
Check out all 1/4 ton arbor presses from Janesville Tool
Contact Janesville Tool with questions or for more information.
Description
You can configure each model individually by selecting the base model plus any additional attachments.
You may purchase the DT-500 1/4 ton base model or buy 2 alternative variations:
- Full stroke version - DT-500 1/4 ton full stroke lever press
- Full stroke with adjustable handle - DT-500 1/4 ton adjustable handle full stroke lever press
An unparalleled combination of precision & toughness.
The DT-500-AH lever press may be easily customized for industrial use, light duty, cleanrooms, making jewelry, plastic materials, or PEM nuts. Our presses can be built for all sorts of different purposes:
Shop all arbor lever presses available for sale online from Janesville Tool & Manufacturing.
Literature & Downloads
Options
Any of the following options can be purchased with these models.
Up-Stroke Limiter
Like the Adjustable Down Stop, the Up-Stroke Limiter clamps onto the ram of the press at any position. It is designed to limit the travel of the up-stroke in order to increase press productivity.
ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS
Adjustable Down Stop
The Adjustable Down Stop is designed to clamp anywhere onto the ram of the press. An adjusting screw is supplied in the unit to assure accurate down stop position with every cycle.
Model ADS Adjustable Down Stop
ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS
Adjustable Handle Model

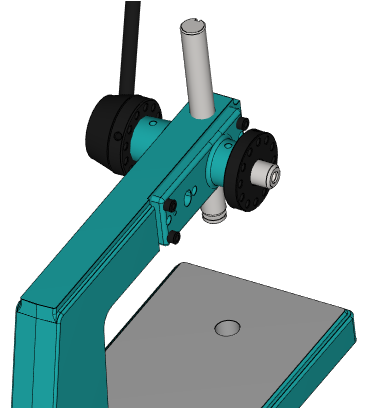

The Left/Right Adjustable Handle Press was designed to benefit the left-handed production worker, but it also can come in handy when the operator needs to hold tooling or parts with their right hand and operate the press from the left for assembly convenience and flow. The handle can be adjusted on either side in 30° increments without removing the ram of the press.
ADD TO YOUR ORDER ABOVE OR CONTACT US FOR MORE DETAILS
Resettable Counter & Bracket
This Counter attaches to many of our manual presses and allows you to accurately track parts production.
ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS
Die Sets
An economical lean way to cut the high costs of purchasing multiple presses to perform different applications. By tooling up several die sets, one press can be used to achieve multiple assemblies. A wide range of Die Sets are ready for 24 hour delivery after receipt of your order. Special machining and custom applications are available, along with several options for all your necessary die set needs. All JT&M Inc. die sets come standard with hardened pins and bushings for long wear.
- A36 Steel Die Sets
- A36 Steel Die Set with Ball Bushings
- Flanged Stock Two Post Die Sets
- Power Die Sets
- Clean Room Die Sets
- Custom Die Sets
All Die Sets can be arranged for assembly with your JT&M Inc. manual or pneumatic arbor press at a minimal cost.
