JT&M - 1/4 Ton Adjustable Precision Pneumatic Press – Model #A-2066
Perfect Your Press! (10) Add-on Product Accessories Available
Need something more specific?
Specifications
| A-2066 | |
|---|---|
| Force capacity | 1/4 tons |
| Force at 60 psi | 396 lbs |
| Force at 80 psi | 528 lbs |
| Force at 100 psi | 660 lbs |
| Cylinder diameter | 3.00" |
| Throat depth | 3.19" |
| Base length | 5.375" |
| Base width | 7.875" |
| Height | 26.833" |

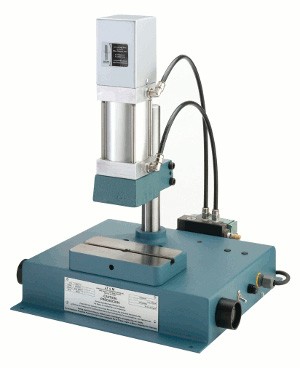

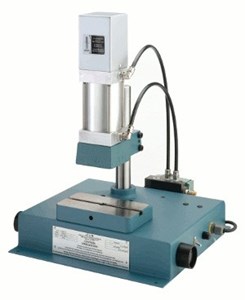

The A-2066 1/4 ton pneumatic arbor press is ideal for small parts assembly, punching, shearing, and staking light gauge metal or plastic. The head of the press may be adjusted for height with two (2) clamping screws. A longer column can be provided on special request.
The A-2066 1/4 ton air press comes equipped with dual hand anti-tie-down/anti-repeat controls, three-inch stroke length, T-Slot Table, as well as an adjustable down stop/anti-rotate mechanism.
Check out all 1/4 ton arbor presses from Janesville Tool
Contact Janesville Tool with questions or for more information.
Description
You can configure each model individually by selecting the base model plus any additional attachments. If you need to purchase more than one of the same attachment, please go to the Attachment tab to the right.
*Pneumatic presses usually ship in 1 to 2 business days.
*Product specifications and pricing subject to change without notice.
*Includes adjustable down stop/anti-rotate mechanism.

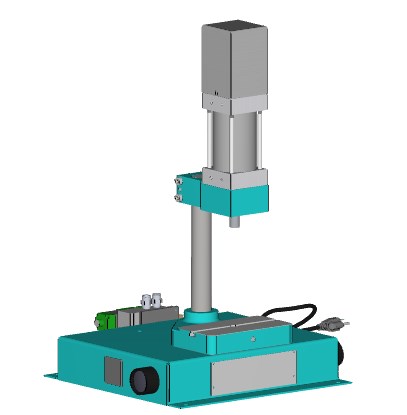

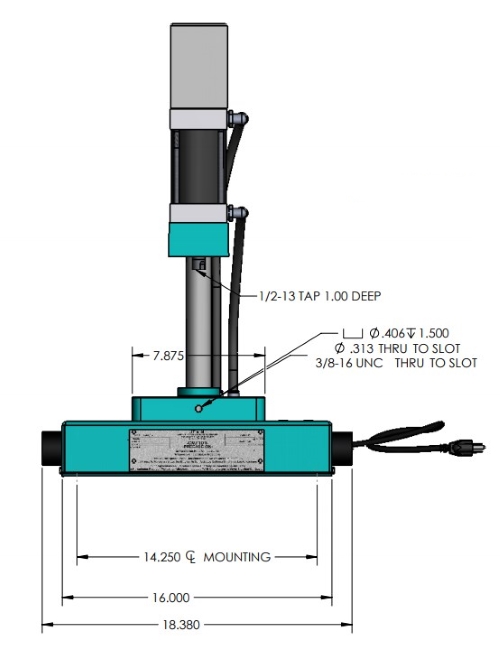

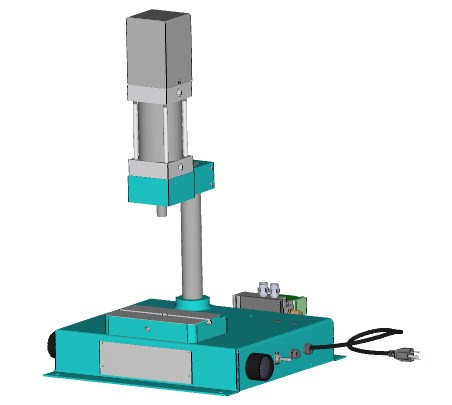

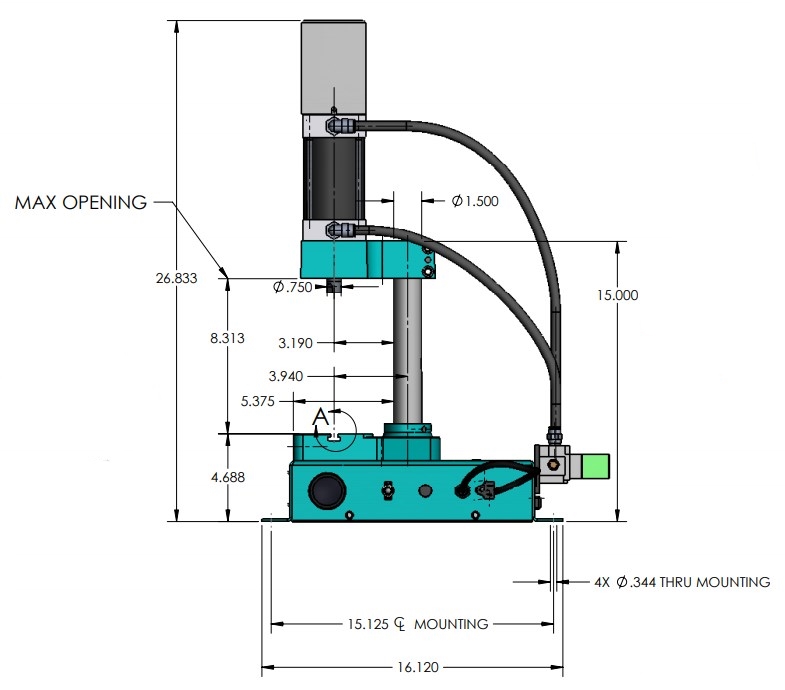

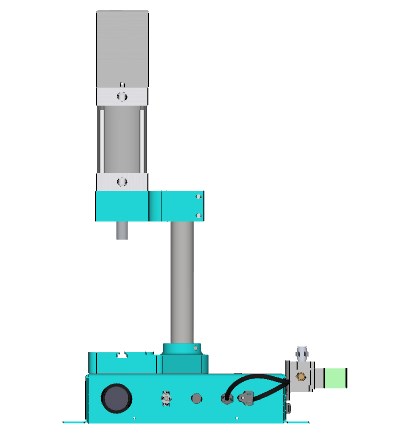

Press dimensions
Features
Maintenance Guidelines
Thanks to its unique design, this press requires virtually no maintenance. Clean, dry air is required for operation. (Lubricated air may be used, but must be used for the life of the press.)
Control Module
The life expectancy for the control module (#540) is ten million cycles. Replacing the module on a yearly basis will ensure production reliability and avoid costly downtime.
Flow Controls
To alter the ram descent speed on this JT&M Press, adjust the screw marked B Located on the valve at the rear of the press. To alter the ram ascent speed, adjust screw A. (The ram retraction speed has been preset by the factory.) Rotate the screws clockwise to decrease the speed of the ram.
Press Operation
To operate the press, push palm buttons in at the same time. Hold the palm buttons in until the downstroke is completed. Consult the service manual for complete safety instructions.
Shop all pneumatic arbor press machines available for sale from Janesville Tool & Manufacturing.
