Indicol with Adjustol

Compare Products

No products added. Please add products to compare.
138II Indicol w/Adjustol - 1-3/8" Diameter "C" Frame
$171.17
Free Shipping
*178II Indicol w/Adjustol - 1-7/8" Diameter "C" Frame (* For Bridgeport "J")
$116.74
Free Shipping
200II Indicol w/Adjustol - 2" Diameter "C" Frame
$160.49
Free Shipping
225II Indicol w/Adjustol - 2-1/4" Diameter "C" Frame
$193.43
Free Shipping
250II Indicol w/Adjustol - 2-1/2" Diameter "C" Frame
$215.48
Free Shipping
275II Indicol w/Adjustol - 2-3/4" Diameter "C" Frame
$226.65
Free Shipping
300II Indicol w/Adjustol - 3" Diameter "C" Frame
$248.57
Free Shipping
400II MinIndicol w/Adjustol
$116.74
Free Shipping

What Indicol is -- It is primarily a super time saver, a universal supporting means on a dial test indicator. It is readily adaptable on the machine quill extension by suing its "C" frame clamp without Janesville Tool Custom Indicols with Adjustol Retrofitsdisturbing the mounted cutting tool. Its frame is designed with 3 bearing pads properly spaced and an opposite pressure screw securing the rigidity of the mounting. The frame pivot and the articulations of its linkage are friction mounted. The pressure on the curved spring washers pushing on flat nylon bearings is not altered by the pivoting of the articulations.

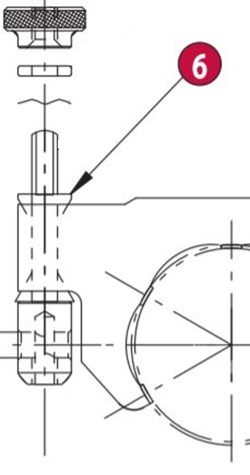

Adjustol - Now there's no need to disturb your indicator while adjusting it. The "Adjustol" allows extremely fine adjustment of your indicator by means of a patented differential screw. The "Adjustol" can be used with your Inidcol or any other indicator base to achieve precise, time saving adjustment -- the "C" spring design makes for zero backlash and extreme accuracy.The "Adjustol" is available as a retrofit (Model #100 & #150) for existing Indicols in the field. Simply replace the 1/4" dia. rod on the Indicol and you can have all the advantages of the "Adjustol".The "Adjustol" is also available on the MiniIndicol (Model #400II) or you can retrofit an existing MiniIndicol with model #100.

Janesville Tool & Manufacturing offers fixturing & workholding tools to help you build the perfect production process.
